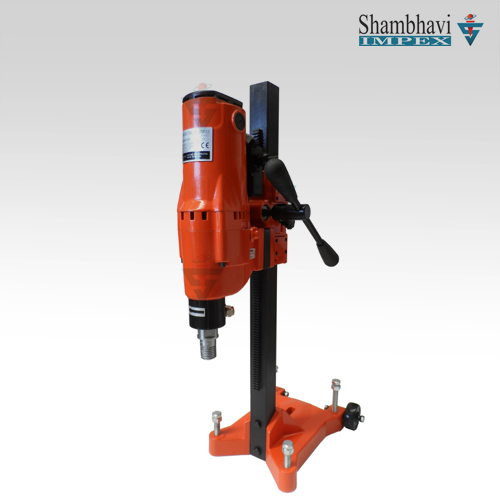

Suitable to Cut / Drill cores of Concrete, Rocks, Stones, Tiles or the similar material. The machine is suitable for core samples of size upto 150mm diameter with the help of thin walled Diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack & pinion is provided for adjustment in height and penetration assembly. The levelling screws are provided at the base. For gripping the sample in position suitable grips are provided. A suitable electric motor, standard make is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation.
Salient Features
- Dimension approx. are as under :
Height : 1300mm
Base : 600 x 1200mm
Head travel on rack : 350mm
Drill Speeds : 900 RPM for soft samples and 350RPM for hard samples.
Water Swivel : Built in the machines.
Suitable for 230 volts AC, single phase
Accessories : 1. Thin wall diamond bits 2. Core Barrel.
