Elastic Properties of Deflected Beam Apparatus - (SISEPD-06)

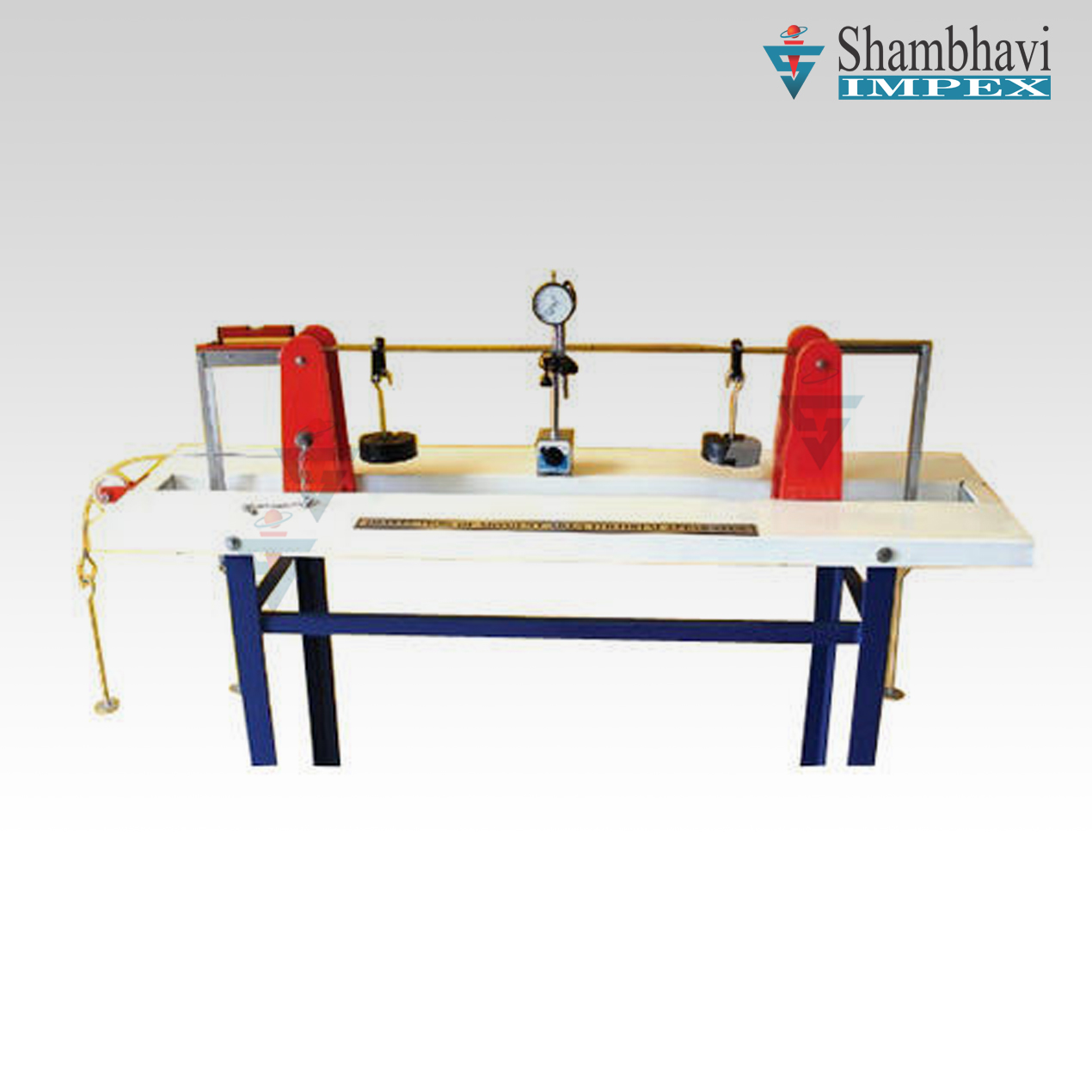

Apparatus consists of a mild steel beam 2.5cm X 3mm in cross section and 100cm long, pinned to two supports 70cm apart situated symmetrically. One of the ends can be fixed or given a known slope by applying a known moment at the end with the help of suspended loads. At the other end also a known moment can be applied. Vertical loads can be applied at various points along the span of the beam. A Dial gauge with 25mm travel ( with a magnetic base) may be supplied with the apparatus. Apparatus to be supplied should be complete with a supporting stand and a set of weights.
