Salient Features
- Double Walled-enamel paint finished MS sheet outside and other parts are highly chromium plated.
- Inside-boiler made of heavy gauge brass sheet 18 SWG with SS sheet inside to withstand max.pressure 20 lbs per sq.inch and working pressure 15 lbs per sq.inch.
- Hydraulically tested to 100%
- Lid made of heavy gunmental casting machined to fit the gunmetal casting ring by means of durable, stem quality, moulded rubber gasket.
- Moulded, jointless rubber gasket made of Neoprene rubber.
- Steam release cock & heavy nuts fitted to the bolts to keep lid in position while in operation.
- Spring loaded safety valve can be set between 10 psi to 20 psi 1-3 psi and then drain. · Pressure Gauge and Immersion heaters are also fitted.
- Boiling dry cut-out device protects the apparatus from burn outs.
- Power supply 220/230 volts AC-50 Hz.
|

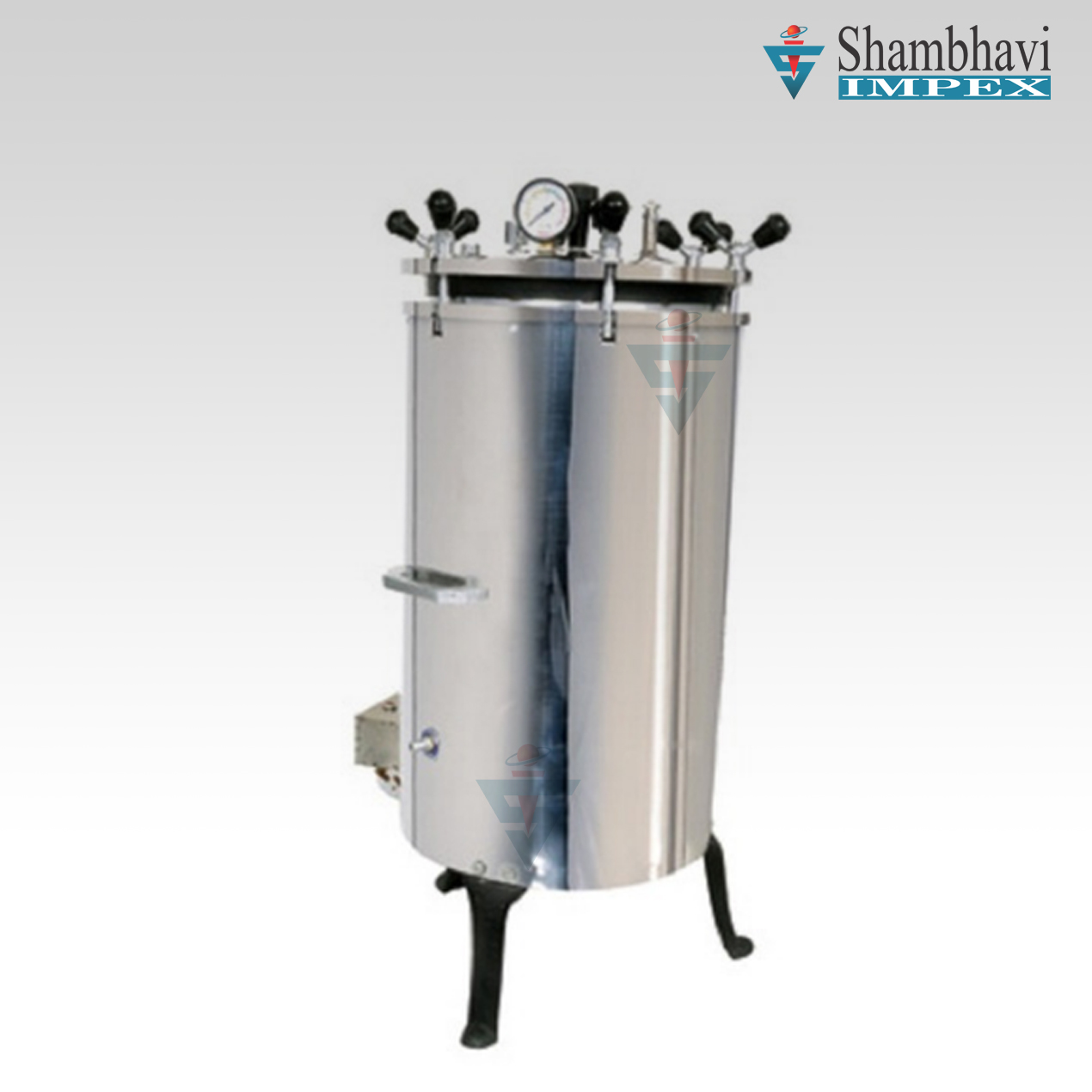

Autoclave Vertical - (IA-001)
