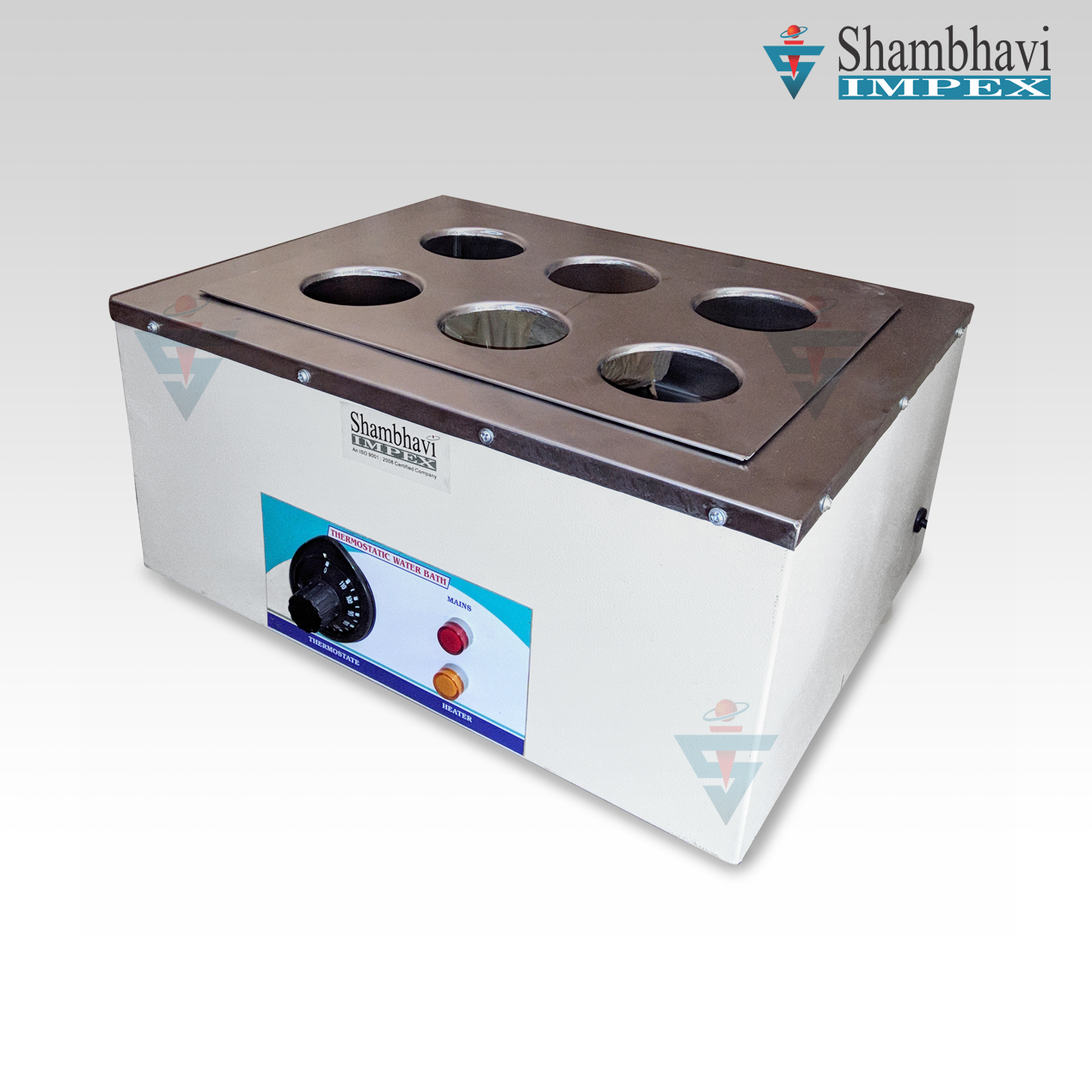

Industrial Water Bath

Body made of Stainless Steel Sheet. Top of the bath and concentric rings are of Stainless Steel.
Automatic cutt-of device for heating elements when bath gets dry
Power Supply -220/230 Volts A.C. 50 Hz.
Sizes available
a) 300x250x100 mm (6 holes of 75 mm dia) 8 ltrs.
b) 355x405x100 mm (12 holes of 75mm dia) 15 ltrs.

Double Walled, inside stainless steel and outside mild steel sheet painted in epoxy powder coating.Gap of 25mm between the walls insulated with pure white glass wool.
Top of the bath and concentric rings are stainless steel
Thermostatic control temp. ranging from room temp. to 100°C with ± 0.5°C sensitivity.
Without thermometer
Power Supply-220/230 Volts A.C. 50 Hz.

Sizes available
a) 300x250x100mm 6 holes of 75 mm dia. 8 ltrs.
b) 355x405x100mm 12 holes of 75 mm dia. 15ltrs.

Optional Accessories

• Digital Temperature indicator cum-controllers

Sizes available
a) 300x250x100mm 6 holes of 75 mm dia. 8 ltrs.
b) 355x405x100mm 12 holes of 75 mm dia. 15ltrs.

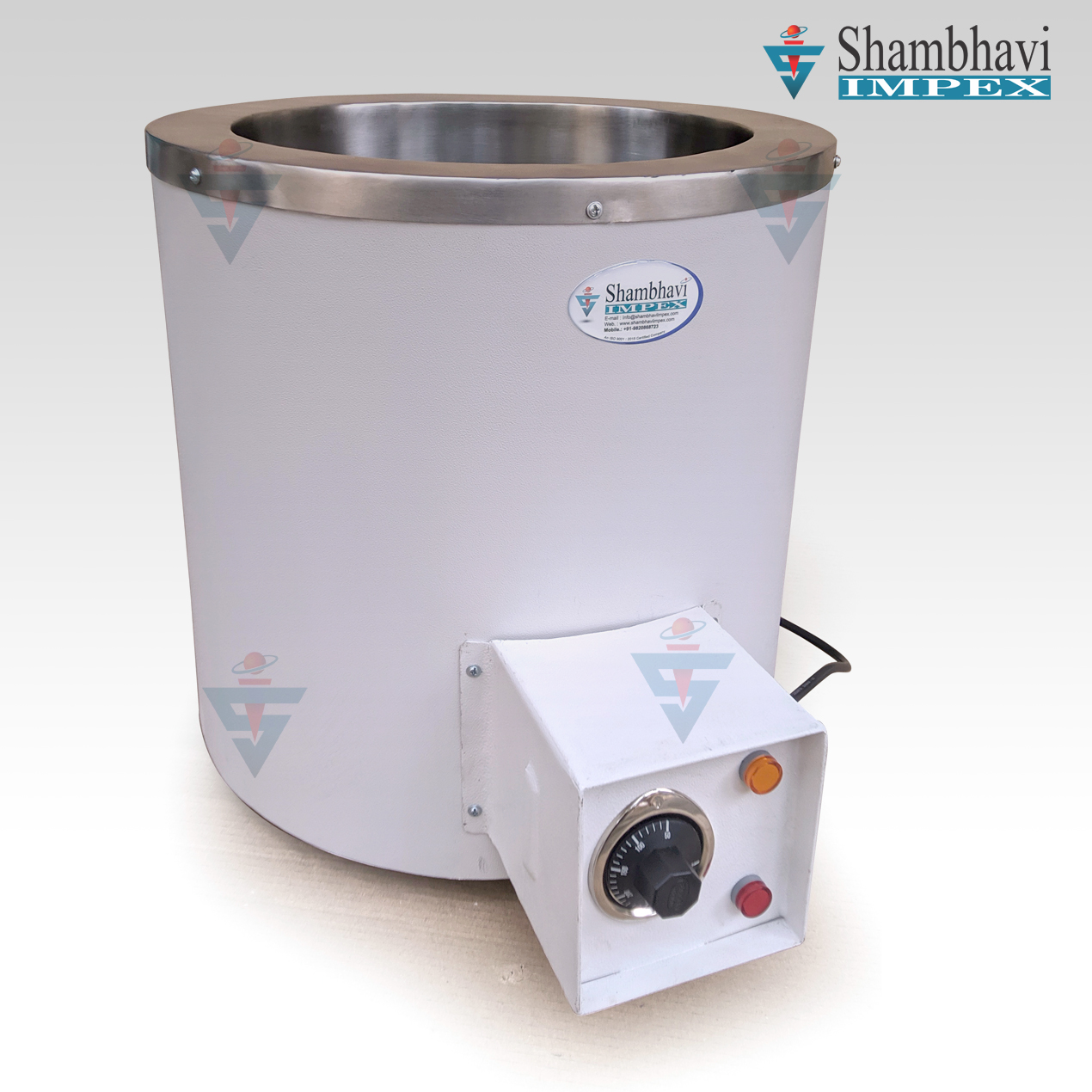

This is the Oil bath which is used for a safety of laboratory and its samples at the high temperature. Oil bath has a 6 module sizes in a large group of (7l to 45l). this is mostly used at the purpose of taking high resistant power. Oil is pouring from the different methods from the instrument.
Features:

• Safe


• Durable


• High Resistant

Specifications:

• Oil bath construction is outer & inner should be S. S


• Temp. Range. 50 to 300 deg


• Usage: Leather Testing Instrument


• Power: Electronic

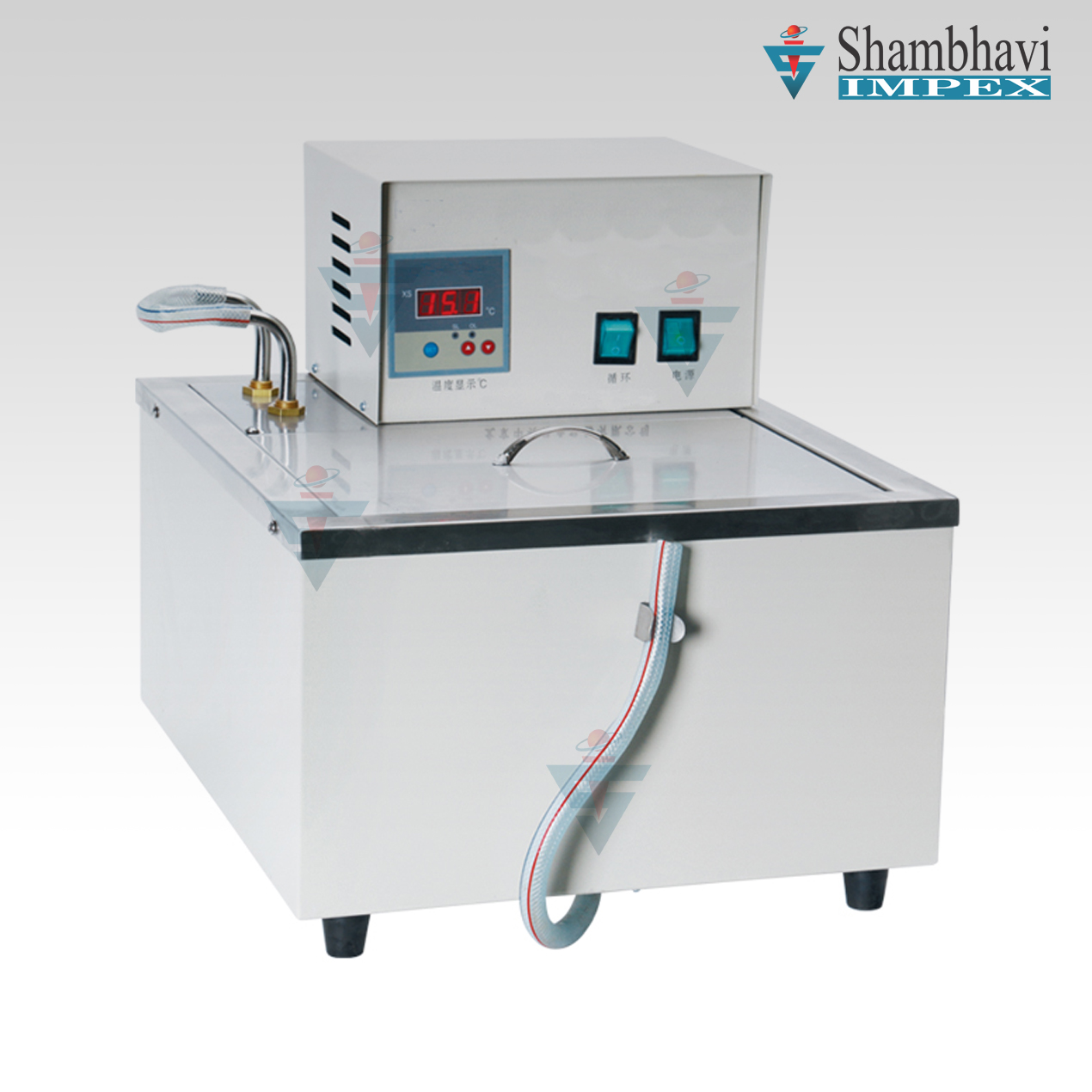

We are leading manufacturer and exporter of Constant Temperature Water Bath - (IWB-004) and our product is made up of good quality.

Double walled construction, the inner chamber is made of stainless steel and outer body made of mild steel duly powder coated.

The gap between the two walls filled with glass wool insulation.

Instructions:-

• Temperature range 5°C above ambient to 99°C accuracy +/- 0.5°C.
• Fitted with immersion type heater.
• Digital temp. Controller cum indicator.
• Operating on 230V AC.
• Fitted with a circular pump with a stirrer.

Working size In inches	Rating
12" x 10" x 8"	1.5 KW
14" x 12" x 10"	2.0 KW
18" x 14" x 12"	2.5 KW

Double walled construction inner chamber is made of stainless steel & Outer chamber is made of mild steel with powder coating. The gap between the two walls filled with high grade glass wool insulation. Temp. controlled by thermostat. Temp. Range varies 5°C above ambient to 60°C.

Size	Rating watts
11" x 7" x6" - 2 Rack	250
14" x 10" x6" - 4 Rack	500
