It is designed for application of cell pressures upto 10 kg/cm2 on a triaxial specimen in the triaxial cell. This unit is mostly used in routine which last for about 10 to 15 minutes wherein the variations of cell pressure can be tolerated.
Salient Features

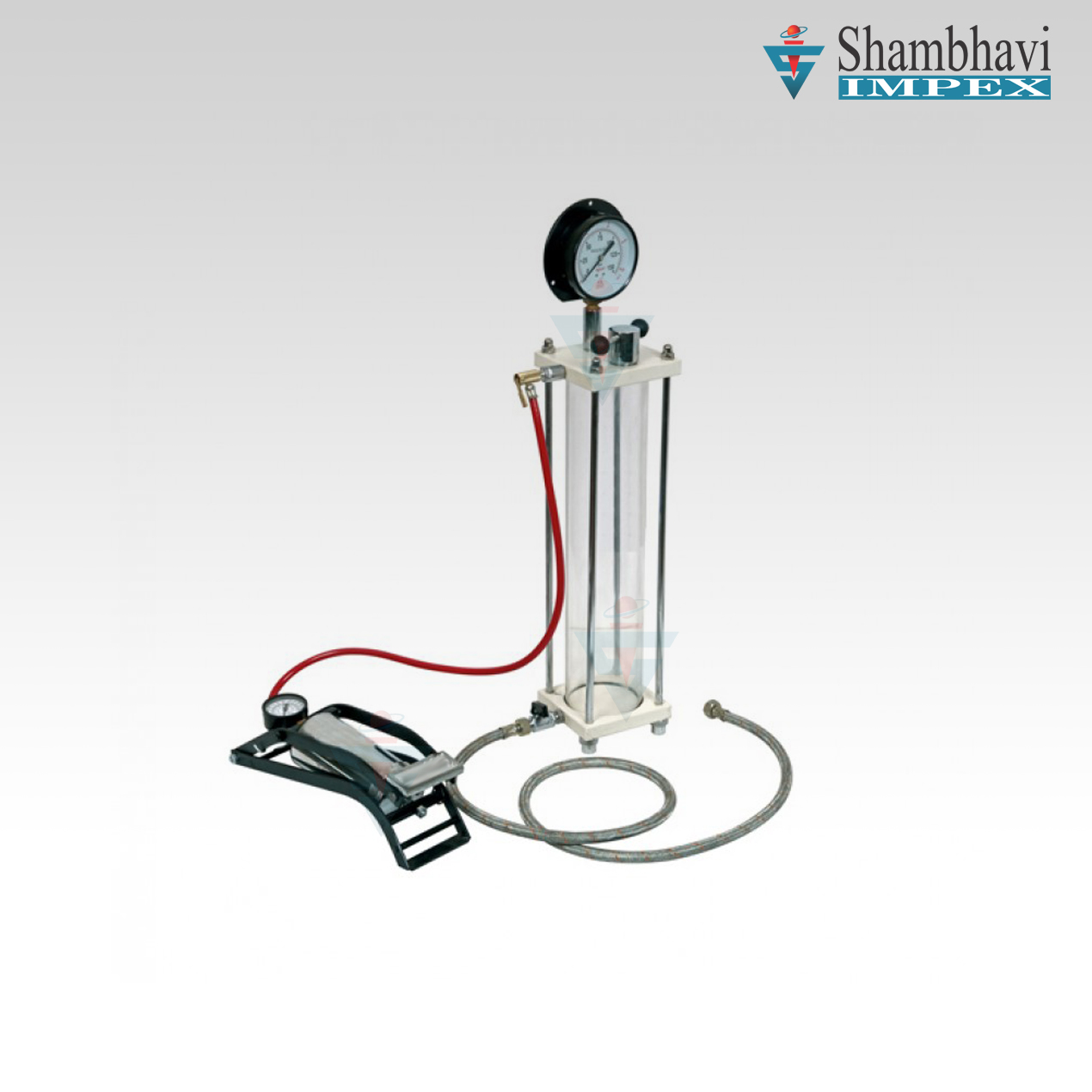

- Specifications : The apparatus consists of a pressure chamber which has a flanged top cap fitted with a 10 Kg/cm². Pressure gauge and a schrader valve for pumping in air. Water inlet and drain cock are fitted to the chamber. The foot pump supplied easily develops a pressure of 10 Kg/cm². Complete with connecting pressure hose.
|
LATERAL PRESSURE ASSEMBLY (10 Kg/cm²) - (LPA-01)
