Total Station

The South Total Station are versatile with complete on-board applications. The internal memory is available up to 17,000 points, and with the newly-designed numeric & alphabetic keypad, such Total Stations would definitely offer you total relaxation during operation. The South Total Station NTS-330 performs various surveying Programs.
Specifications for NTS-332R & NTS-335R

Distance Measurement

• Max. Range for Reflectorless : 350m
  1 Prism : 5.0 km
  3 Prism : 6.0 km
  Mini Prism(φ25.4mm):800 m

• Accuracy : Reflectorless 5mm+3ppm Relector 2mm+2ppm

• Reading : Max. 99999999.999mm; Min. 1mm

• Measuring Time for Reflectorless: Fine Mode:<1.2s; Tracking Mode:<0.5s

• Measuring Time for Reflector: Fine Mode:<1.2s; Tracking Mode:<0.5s IR Sheet Mode: <1.2s

Angle Measurement

• Minimum Reading : 1" /5" (0.3/1.5mgon)

• Accuracy : 2" for NTS-332R & 5" for NTS-335 R

• Detection Method : Horizontal-Dual, Vertical-Dual continuous

Telescope

• Image : Erect

• Tube Length : 154 mm

• Magnification : 30x

• Minimum Focus Distance : 1m

• Resolving power : 3"

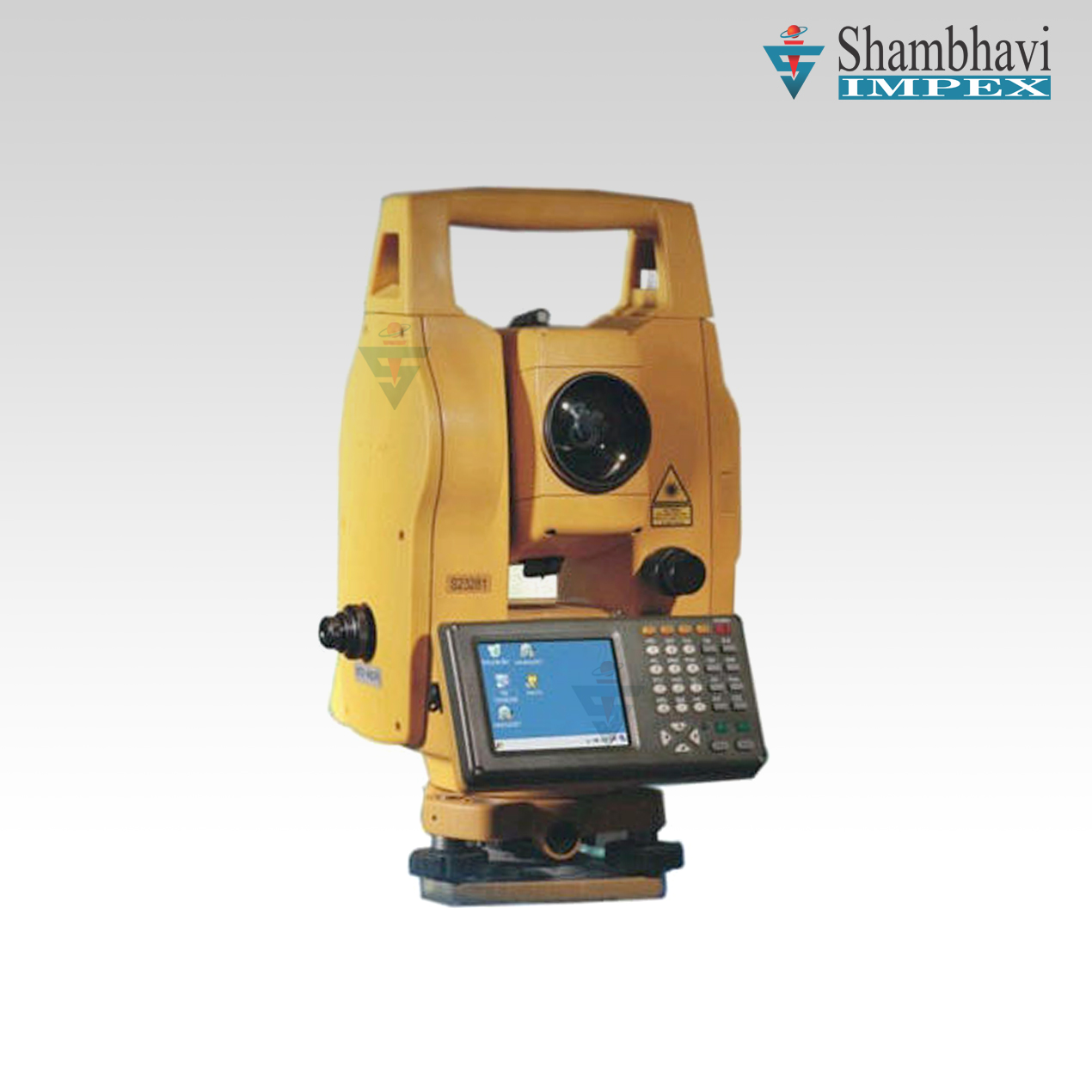

NTS-340R Total Station has 3.5 inches extremely large LCD display of 240 X 320 dpi. It turns the complex professional job into graphical operation, intuitively and easily even for beginners. Features

• Powerful Calculation - Simple alignment parameter input, real time calculation. Various calculation mode, including positive and negative measurement of coordinates, hole calculation, back break calculation.

• Simple and quick Operation - Tag list-style operation, simple and quick input. Graphical display for all data.

• System seamlessly compatible - Generated files can be copied to the onboard system and used directly. The received real test data of cross section from on board system can be used directly for calculation.

• Various formats output-Supporting dxf, doc, xls, bmp and many other formats.

Specifications for NTS-342R & NTS-345R

Distance Measurement

• Max. Range for Reflectorless : 350m

  1 Prism : 5.0km

  3 Prism : 6.0Km

  Mini Prism(φ25.4mm) :800m

• Accuracy : Reflectorless 5mm+3ppm Relector 2mm+2ppm

• Reading : Max. 99999999.999m; Min.1mm

• Measuring Time- Reflectorless: Fine Mode:<1.2s; Tracking Mode:<0.5s
  Reflector: Fine Mode:<1.2s; Tracking Mode:<0.5s IR Sheet Mode: <1.2s

Angle Measurement

• Minimum Reading : 1" /5" optional

• Accuracy: NTS-342R - 2", NTS-345R - 5"

• Detection Method : Horizontal: Dual, Vertical: Dual

Telescope

• Image : Erect

• Tube Length : 154 mm

• Magnification : 30x

• Minimum Focussing Distance : 1m

• Minimum Focus : 3"

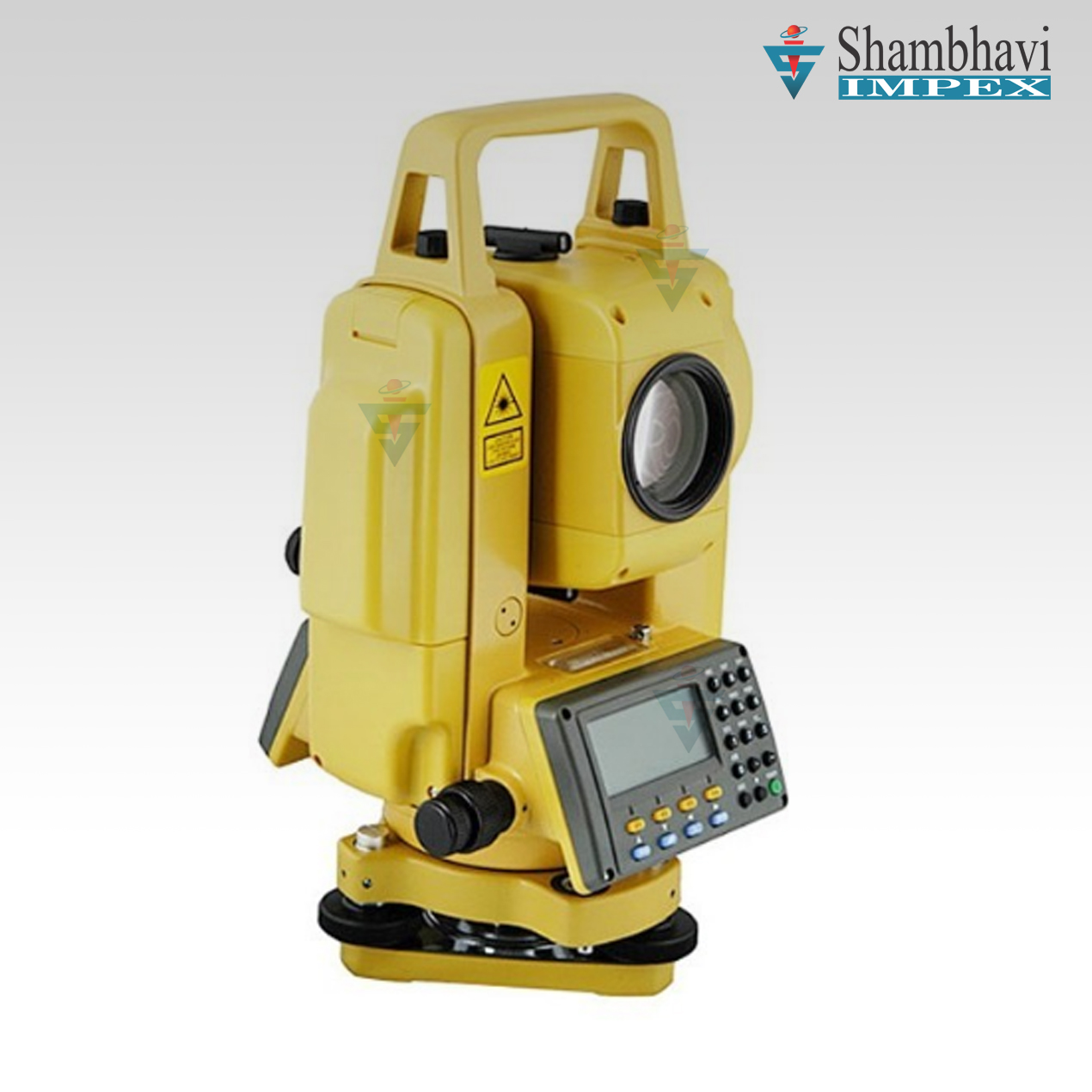

The South Series Total Station are versatile with complete on-board applications. The internal memory is available up to 17,000 points, and with the newly-designed numeric & alphabetic keypad, such Total Stations would definitely offer you total relaxation during operation. The South Total Station NTS-350/350R comes with two 8 hour NiMH battery packs. An optical plummet site for quick easy set-up. A 4 line adjustable LCD display for easy data manipulation. Four yellow function buttons to guide you through the angle, distance, and coordinate operations. The onboard applications will save you time and money in the field. Perform remote elevations, resections, missing lines and stakeout quickly and accurately.

• Max. Range for Reflectorless : For NTS-352R is 200m & For NTS-355R is 200m

  1 Prism : For NTS-352L is 2km, For NTS-352R is 3.0 Km, For NTS-355L is 1.8Km & For NTS-355R is 3.0Km

  3 Prism : For NTS-352L is 2.5km, For NTS-352R is 4.0Km, For NTS-355L is 2.3Km & For NTS-355R is 4.0Km

  Mini Prism : For NTS-352L is 800m, For NTS-352R is 800m, For NTS-355L is 800m & For NTS-355R is 800m

• Accuracy : Reflectorless 5mm+3ppm Reflector 2mm+2ppm

• Reading : Max. 99999999.999m; Min. 0.1mm

• Measuring Time: Fine Mode:1s; Tracking Mode:<0.5s

Angle Measurement

• Minimum Reading : 1" /5"

• Detection Method : Horizontal: Dual, Vertical: Dual

Telescope

• Image : Erect

• Tube Length : 154 mm

• Magnification : 30x

• Minimum Focus Distance : 1m

• Resolving power : 3"

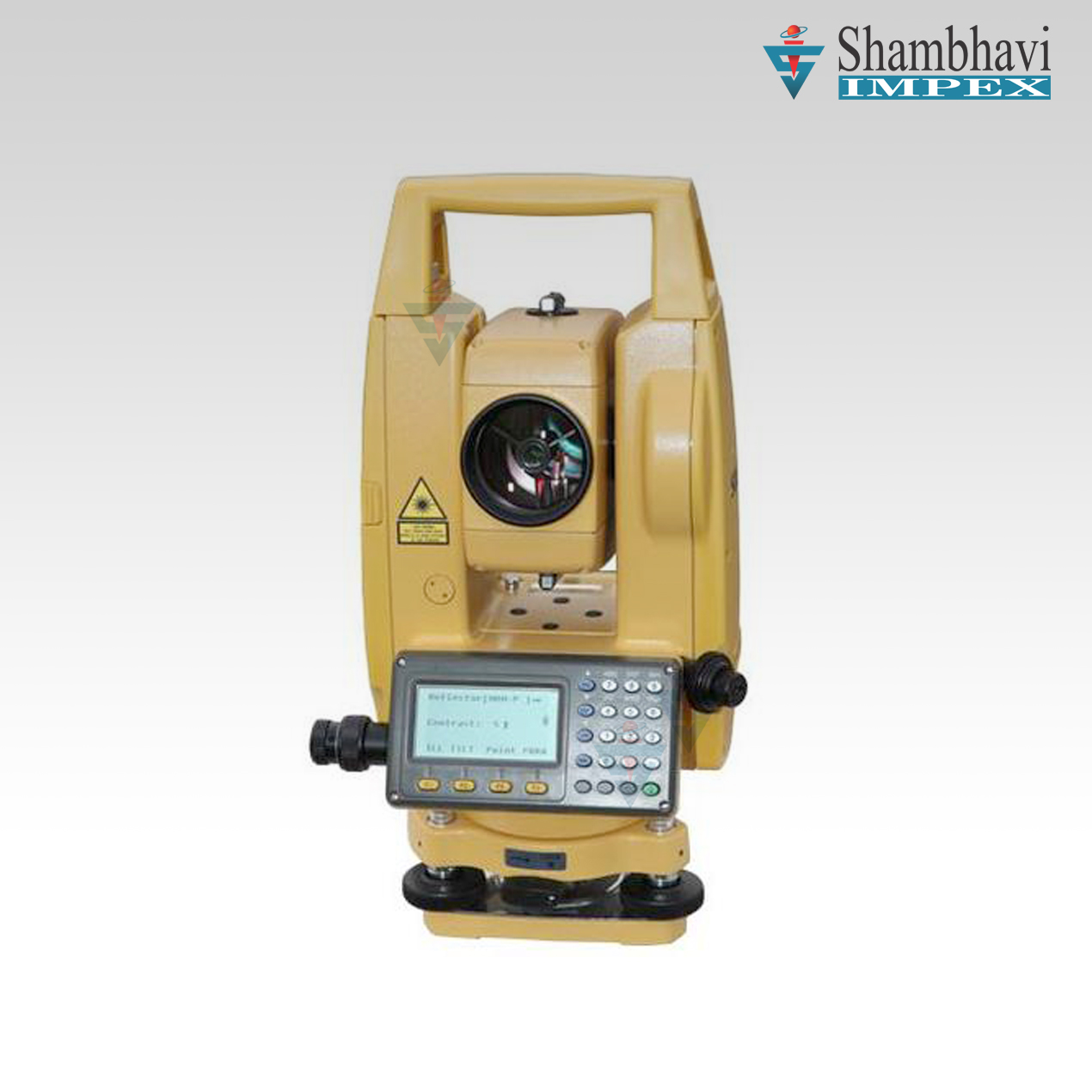

South Total Station NTS-360R is embedded with various outstanding surveying programs, coupled with functions of data storing and parameter setting, which can be widely applied in various kinds of professional and construction survey. Reflector less 300m Excellent Functionality SD card and USB Interface Six-line Large LCD Road-Design Program. Products Features :

• Absolute Encoding Disk: With absolute encoding disk, you can start your work directly as the instrument is powered on. Azimuth angle will be saved even if the power is off incidentally in the job.

• Six-line large LCD:Convenient Management on Internal Memory. Huge capacity of internal memory enables you to easily complement file system management, including adding, deleting, modifying and transferring data.

• Various Surveying Programs

• The Road Design Measurement

• Dual Axis Compensation: Dual Axis Compensation, high automation in eliminating errors and compensation graphic vial display clear to adjust.

• SD card function and USB interface: SD card provides huge memory, fast speed of data transferring, incredibly flexibility and reliable safety. Saving various data of job into the SD card, you can easily read it just by inserting it into the SD port of your laptop.
  USB interface is the international mainstream for PC communication, with it your job must be much easier.

• Superior Water and Dust Proof IP65


Salient Features
• Standard ConfigurationMainbody,Back-up on-board Battery, Charger, Communication Cable, Tools Kit, Belt for Case, Dryer, Plummet, Carrying Case, Operation manual, Software CD, TS QC Pass, Warranty Card, Rain Cover.
Specifications for NTS-362R & NTS-365R

Distance Measurement

• Max. Range for Reflectorless : 300m (object in shade, or sky overcast)
  1 Prism : 5.0Km


• Accuracy : Reflectorless - Fine: 5mm+3ppm, Tracking: 10mm+2ppm, Relector Fine - 2mm+2ppm, Tracking: 5mm+2ppm, IR Sheet: 5mm+2ppm
• Reading : Max. 99999999.999m; Min. 0.1mm
• Measuring Time: Reflectorless: Fine Mode:<1.2s; Tracking Mode:<0.5s Reflector: Fine Mode:<1.2s; Tracking Mode:<0.5s IR Sheet Mode:<1.2s


Angle Measurement
• Minimum Reading : 1" /5"(0.3/1.5 mgon)
• Accuracy : NTS 362R - 2" & NTS - 365R - 5"
• Detection Method : Horizontal: Dual, Vertical: Dual

Telescope
• Image : Erect
• Tube Length : 154 mm
• Magnification : 30x
• Minimum Focus Distance : 1m
• Resolving power : 3"

Colorful touch screen:Using Windows CE.NET 4.2 Operating system, 3.2 inches extremely large LCD display of 240x320dpi, shows a large amount of information at a time, makes the measuring operation easy and clear. You can intuitionally launch data storing, manipulating and exchanging with PC based on Windows platform.
Convenient Data Communication: Upload/download data via SD card or mini USB cable transfer Absolute Encoding Disk With absolute encoding disk, you can start your work directly as the instrument is powered on. Azimuth angle will be saved even if the power is off incidentally in the job.
Laser Path Diagram Dual Axis Compensation Circuit Diagram Upgraded Main board: Using different main board for angle measurement and distance measurement, more simple and reasonable structure, easy maintaining.
Dust Proof & Waterproof: IP66 STANDARD
Windows Operating System

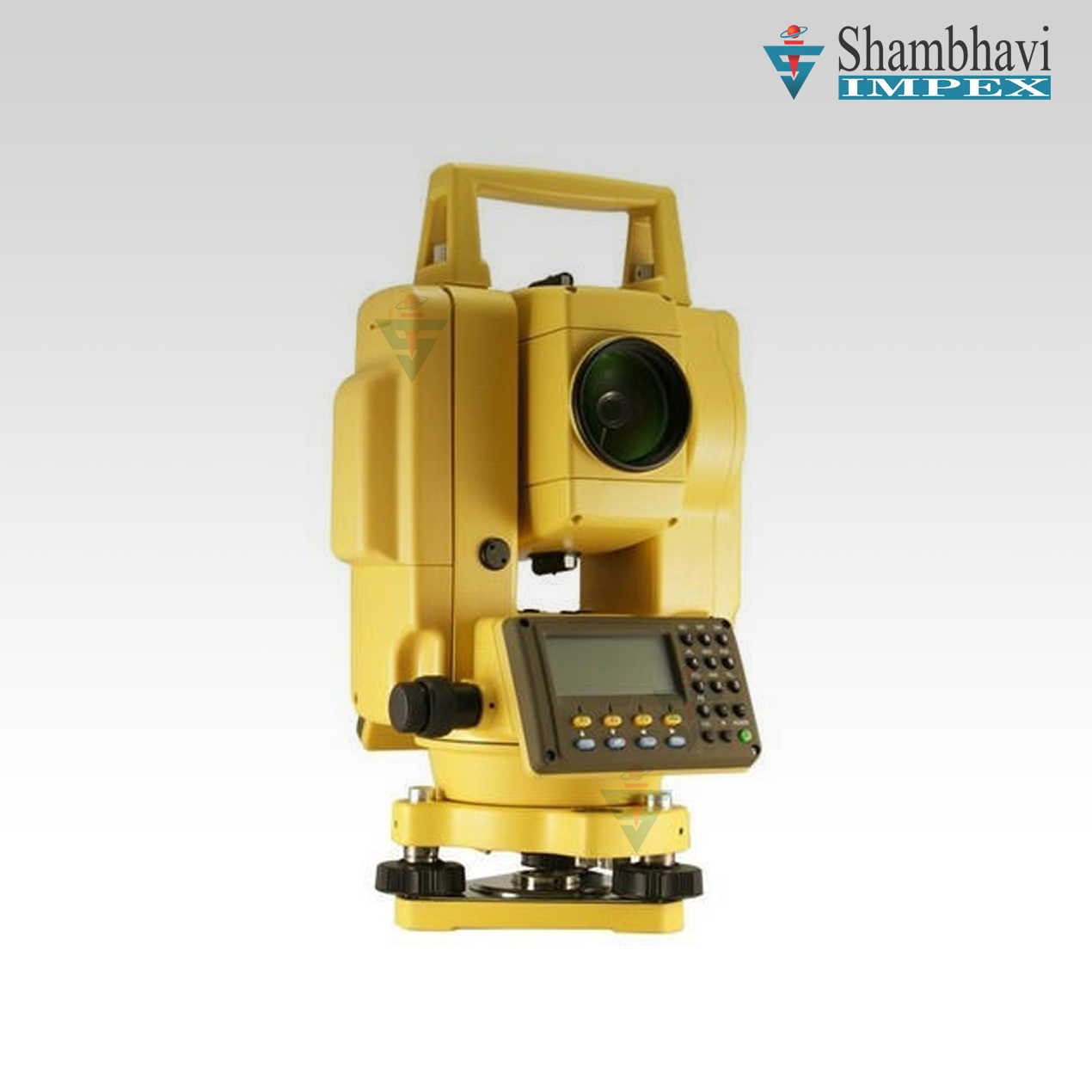

Specifications for NTS-372R & NTS-375R

Distance Measurement

• Max. Measuring Range for Single Prism : 5.0km
  Triple Prism : 6.0Km
  Mini Prism (25.4mm) : 800m
  Retro Target Sheet : 800m
  Reflectorless : 350-400m


• Accuracy : Reflectorless mode:+/-(5+3ppm X D)mm, Relector mode:+/-(2+2ppm) X D)mm

• Reading: Maximum- 99999999.9999 m, Minimum-0.1m

Measuring Time for Reflector: Fine mode-<1.2s; Rapid Mode-<1.2sTracking mode: <0.5s; Sheet mode-<1.2s

Angle Measurement

• Reading : 0.5" /1"/5" optional, minimum readout 0.1"

• Accuracy : NTS-372R: 2" & NTS-375R: 5"

• Detection Method : Horizontal: Dual, Vertical: Dual

Telescope

• Image : Erect

• Tube Length : 154 mm

• Magnification : 30x

• Minimum Focus Distance : 1m

• Resolving power : 3"

NTS-960R is a modern device with a comprehensive software that allows you to perform advanced and custom measurements with the calculations. High precision parameters give precision and reliability of the measurements, and increased waterproof and dust-proof will protect the equipment from the effects of the most severe weather conditions. The most characteristic features of NTS-960R are:

• Laser distance measurement without the prism up to 300 m with an accuracy of 5+3 ppm, and a single measurement on the prism will be able to perform a distance of 5 km!

• Enabling intuitive data entry, maintenance and data exchange with a PC running Windows.

• Easy-to-use color touch screen

• Large LCD display 3.5 "with a resolution of 320 x 240, which allows you to put a lot of information on one screen

• 32-bit processor

• Convenient data exchange with the USB cable or Pendrive

• Improved motherboard. Easier maintenance thanks to the simplification of design.

• Dustproof and waterproof with high-standard IP65

POWERFUL SOFTWARE BUILT-IN MAPPING GENIUS is an integrated software for field data collection and mapping. With the advantages of laptop, data collector, it enable the user to collect coordinates in step with collecting diagrams, attributes, get final map in field by using SCB technology. It realizes the integration of indoor and outdoor jobs. ENGINEERING GENIUS is specially designed for construction measurement jobs. It brings user data collection/ calculation and mapping programs which can be applied in various works like staking-out, curve measurement, section measurement, fill/ cut calculation, coordinate conversation, leadline measurement, level measurement, level section measurement and much more.
Specifications for NTS-962R & NTS-965R

Distance Measurement

• Max. Range for Reflectorless : 300m

  1 Prism : 5.0km

  3 Prism : 6.0Km

  Mini Prism :800m

• Accuracy : Reflectorless 5+3ppm Relector 2+2ppm

• Reading : Max. 99999999.9999 m; Min.0.1mm

• Measuring Time- Fine: 2s; Quick Measure:1.2s, Tracking:<0.6s

Angle Measurement

• Minimum Reading : 1" /5" optional

• Accuracy: NTS-962R - 2", NTS-965R - 5"

• Detection Method: Horizontal: Dual, Vertical: Dual

Telescope

• Image : Erect

• Tube Length : 154 mm

• Magnification : 30x

• Minimum Focussing Distance : 1m

• Minimum Focus : 3"
