Curved Member Apparatus

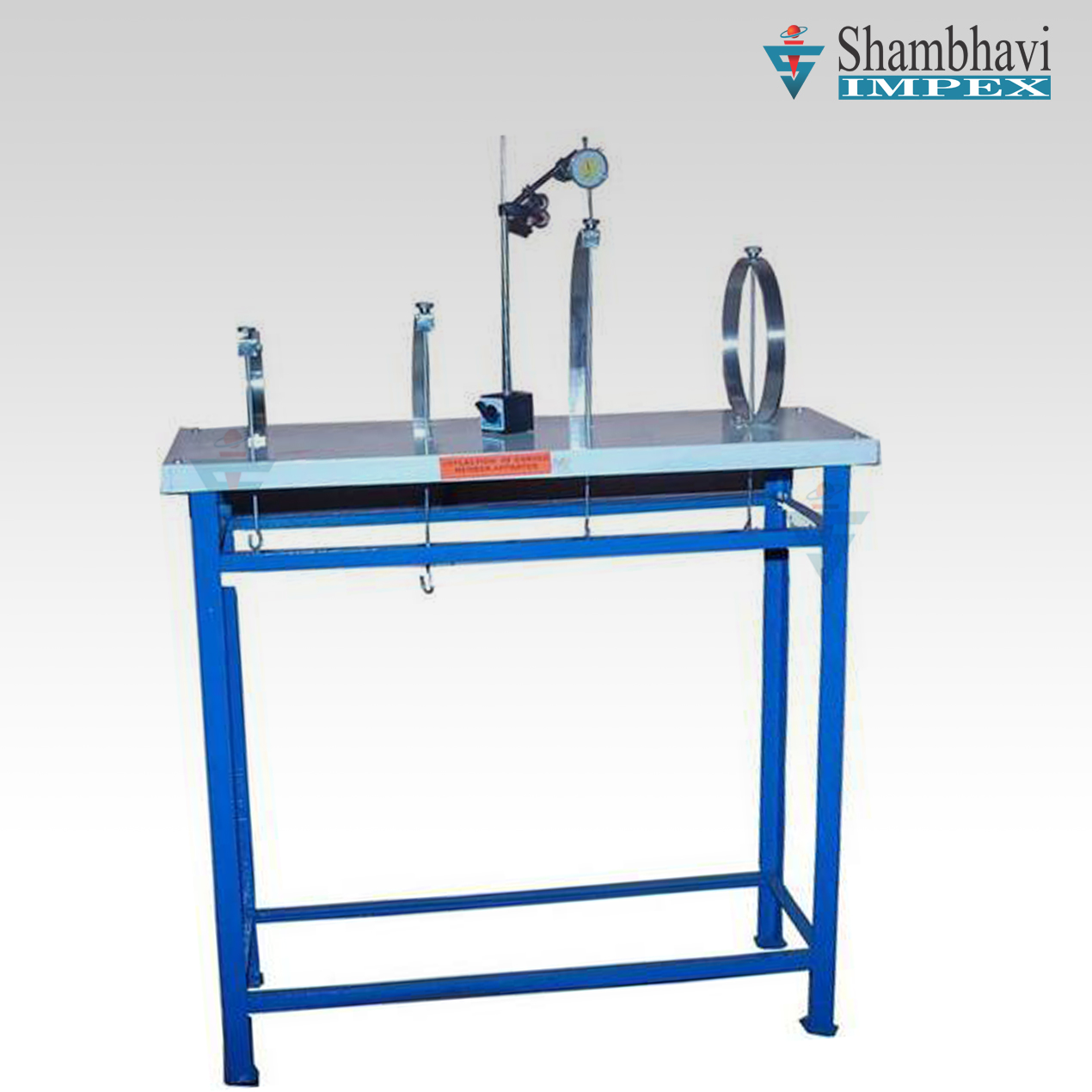

Apparatus consists of a steel bar which is used to make the different curved member Viz. circle, semicircle with straight arm, a quadrant of a circle and quadrant of a circle with straight arm. The bottom ends of the members are fixed to the base. Under the application of load at free end, its horizontal and vertical deflection can be measured with the help of dial gauges. A dial gauge with 25mm travel (with a magnetic base) is supplied with the apparatus. Apparatus will be supplied complete with a supporting stand and a set of weights.
