MORTAR MIXER,MORTAR PENETROMETER

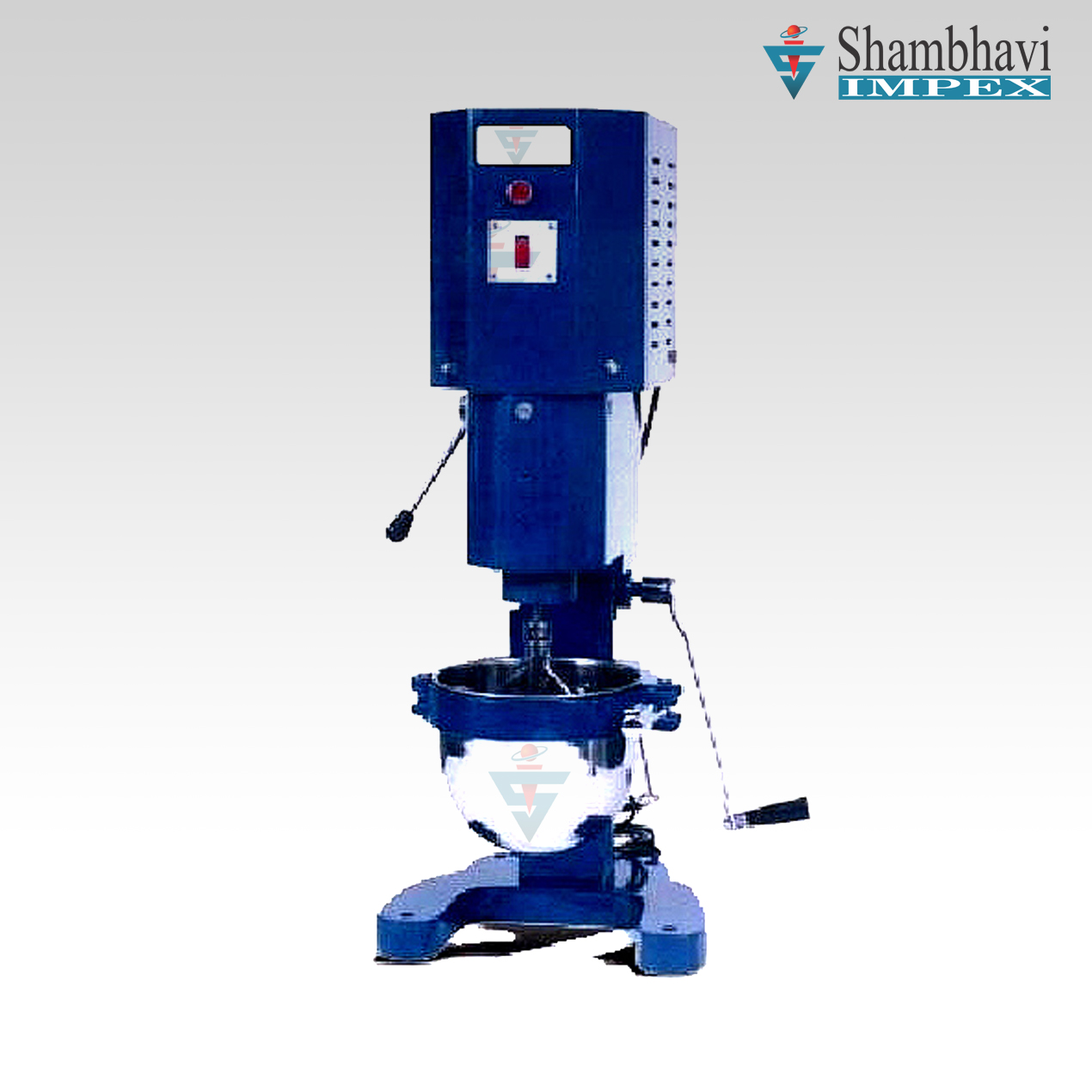

MORTAR MIXER - (MM-01)

Request A Quote

It is used for mixing cement pastes, mortars and pozzolanas.

Salient Features

Specifications : The apparatus consists of an epicyclic type stainless steel paddle imparting both planetary and revolving motion, by means of gears. It has two speeds of 140 + 5 r.p.m. and 285 + 10 r.p.m. with planetary motions of approximately 62 r.p.m. + 5 r.p.m. and 125 r.p.m.+/-10 r.p.m. respectively. The stand of the mixer has arrangement to raise or lower the bowl. Complete with stainless steel bowl of about six litres capacity. Suitable for operation on 230 volts, 50 cycles, single phase, A.C.supply.

MORTAR PENETROMETER - (MM-02)

Request A Quote

It is used for finding out the rate of hardening of mortars sieved from concrete mixtures, by means of penetraion needles of different cross-sectional areas.

Salient Features

Specifications :The instrument consists of a barrel housing a calibrated spring and a stem graduated from 0-70 kg x 1 kg. Six interchangeable penetration needles of areas 645, 323, 65, 32 and 16mm sq. are provided. The penetration resistance is measured by the force exerted to penetrate the mortar by 25mm and is indicated by a sliding ring on the stem, which is graduated. Needle shanks are marked at every 12.5mm. Compete in a wooden carrying case.
