Moulds

Cube Moulds - (SICCCM-01)

Specifications : These are available in different sizes and are made according to Indian and British Standards. For the metric size cube moulds, the faces are machined flat to +/-0.02mm accuracy and finished to within 0.02mm. For the inch size moulds, the faces are machined flat to +/-0.01 inches and finished to within 0.01 in. All moulds are supplied complete with base plate.
Available Models
  • Mould Cast iron, for 50mm,
  • Cube Mould mild steel for 7.06cms cube with loose base plate.
  • Cube Mould, cast iron, 15cm, Weight- 7.5 kg. approx
  • ISI marked - Cube Mould, cast iron, 15cm, Weight- 14 kg.

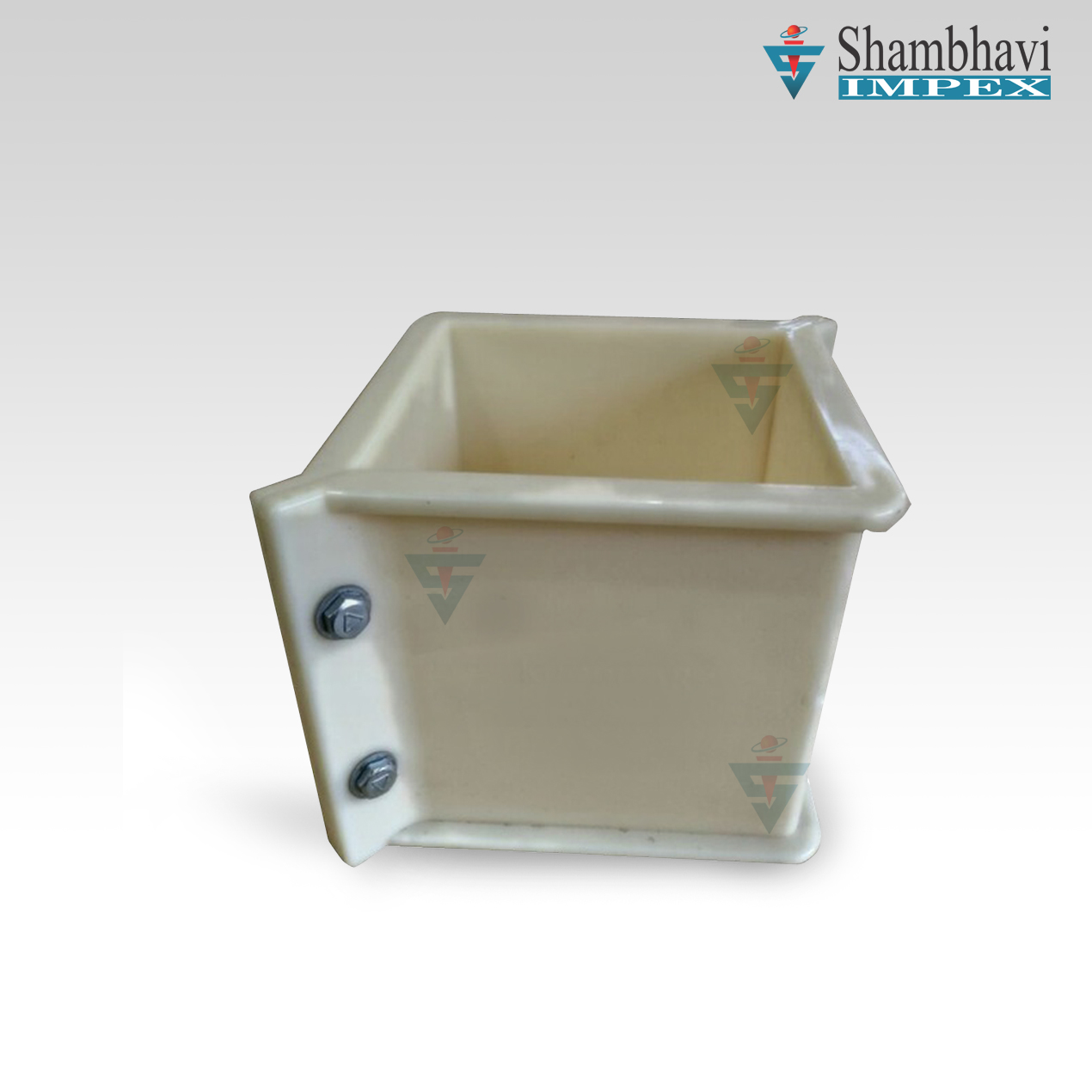

Plastic Cube Mould - (SICCCM-02)

Construction Material: Polycarbonate
Size: 150mm X 150mm

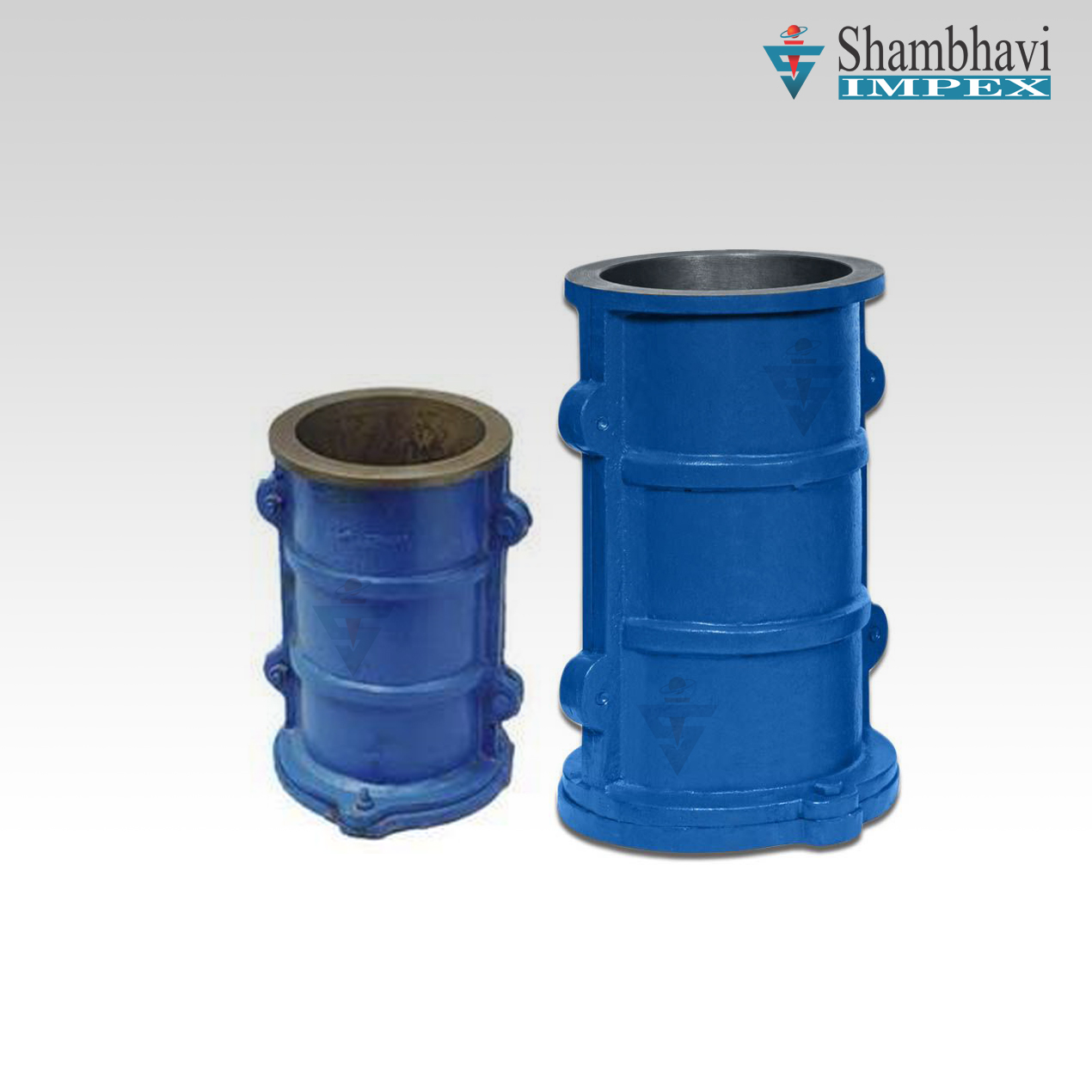

Cylindrical Moulds - (SICCCYM-03)

For testing concrete cylinders for compressive strength tests.
Salient Features
  • Specifications : The moulds is split vertically into two parts. The mean internal diameter is within 0.2mm and height is within 1mm. The ends are machined to 0.05. The base plate and top plate are machined flat to 0.03mm.
    Mould, Cylinder, Cast iron, 15cm dia x 30cm height .
    Mould, Cylinder, Cast iron, 10cm dia x 20cm height .
    Mould, Cylinder, Cast iron, 30cm dia x 60cm height.

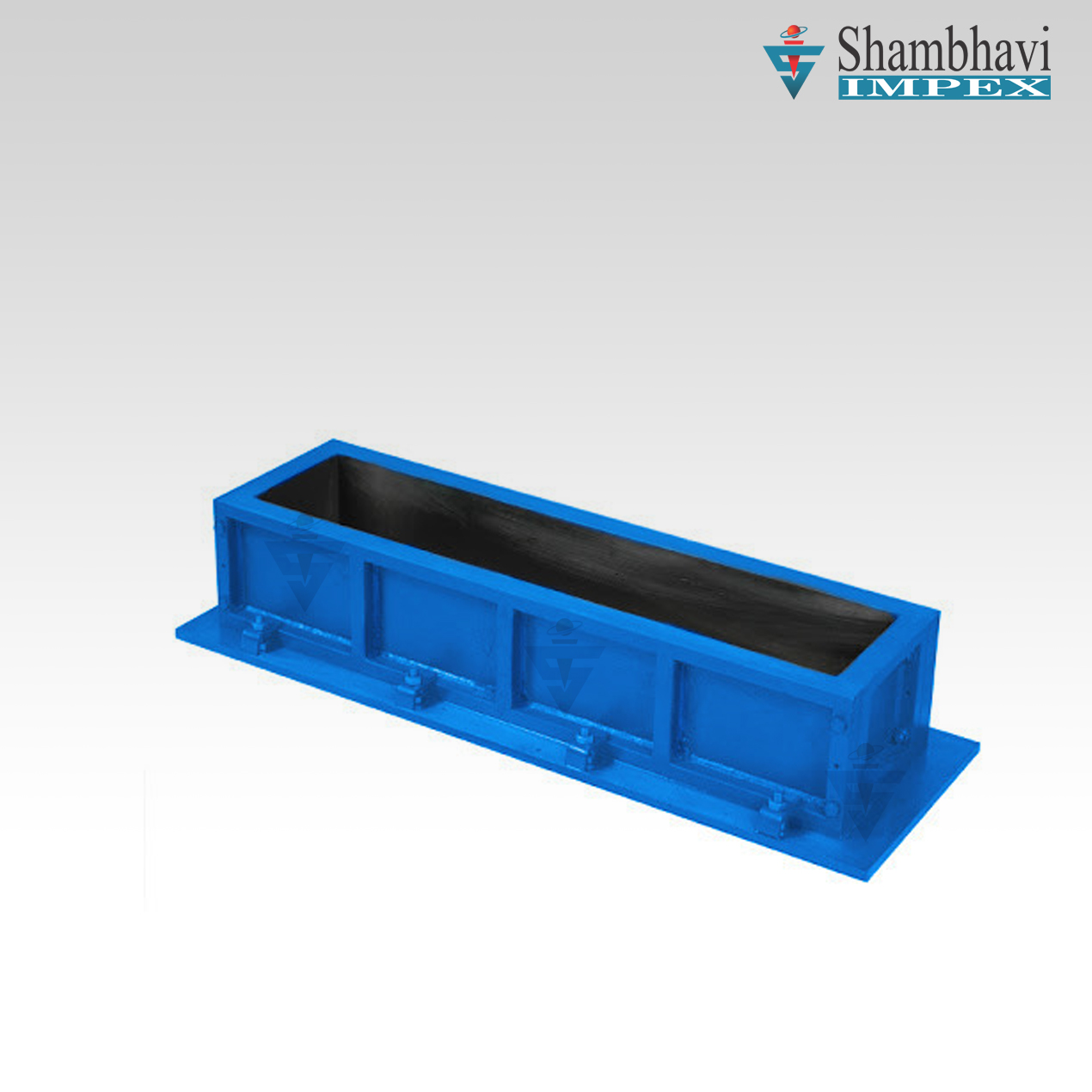

Beam Moulds - (SICCBM-04)

For casting, concrete specimens for flexure tests.
Salient Features
  • Specification: Made of cast iron. The moulds are made of 4 plates assembled together. Each mould is supplied complete with base plate. Faces are machined flat to +/-0.2mm and finished in size to 0.2mm
  • 10cm X 10cm x 50cm (IS.516-1959)
  • 15cm X 15cm X 70cm (IS.516-1959)
  • 15cm X 15cm X 75cm
  • 4cm X 4cm X 16cm

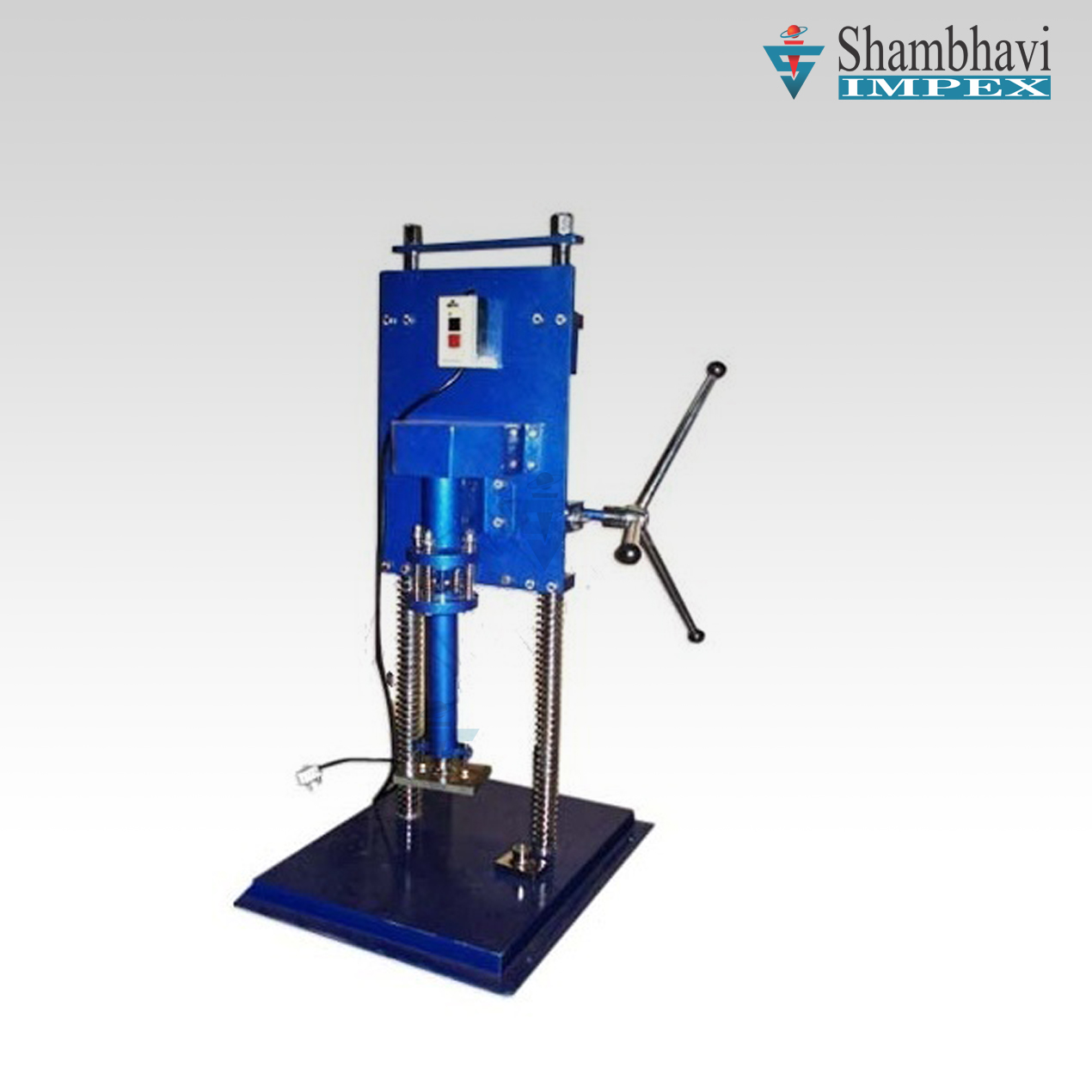

Vibratory Hammer For Cube Moulds - (SICVHCM-05)

Vibratory Hammer is a specialized equipment used consistently at construction sites. The Vibratory Hammer is electrically operated. Uses - - Used for changing the soil formation with the use of its vibration. - Used for driving hammers into heavy or hard piles - Used for the compaction of concrete cubes of 150mm & 100mm
