Centrifugal Pump Test Rig

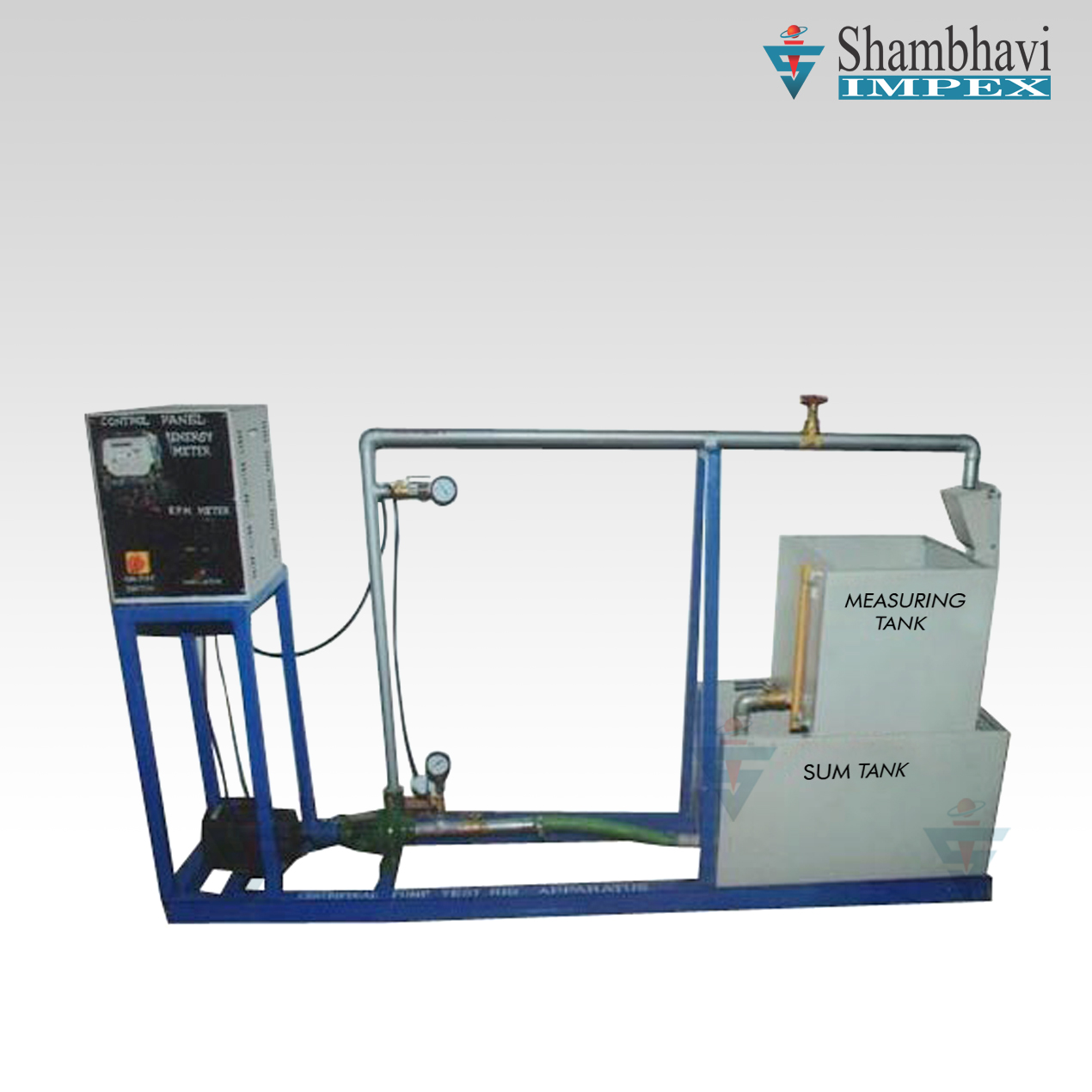

Centrifugal Pump Test Rig - (SIMHCP-04)

Closed Circuit Type With S.S. Tanks, ISI Mark Pumps & Motors, Powder coated. The closed circuit test rig consists of a "kirloskar make" monoblock centrifugal pump. The pump is provided with a vacuum gauge on suction pipe and a pressure gauge on discharge pipe. The gate valve is used to adjust the head on the pump. The discharge is measured by measuring tank / water flow meter. The input power is measured by energy meter.

1. The equipment is coated with an attractive and anti-corrosive powder coating.
2. The equipment consists of ISI standard
(i) Mono block -- Kirloskar make
(ii) Energy meter -- Maxwell Jaipur make
(iii) Water flow meter -- kranti/Anand make.
Salient Features
  • 1. Centrifugal monoblock-1 HP
  • 2. Pressure gauge and vacuum gauge for measuring the head.
  • 3. Measuring tank of 400x400 x400 mm
  • OR
  • Water flow energy meter for measuring the discharge.
  • 4. Stop watch.
  • 5. Sump tank of sufficient capacity.
  • 6. Energy meter to measure input power.

Multi Stage Centrifagal Pump Test Setup - (SIMHCP-05)

The Set-up is designed to study the performance of Multi Stage Centrifugal Pump. The Set-up consists of a Multi Stage Centrifugal Pump coupled with DC motor & drive, supply tank, measuring tank & pipe fittings for closed loop water circulation. There are 2 separate pumps connected to DC Motor and drive and can be connected in series and parallel to stimulate different combinations. Pressure and Vacuum Gauge are connected on delivery and suction side of each pump for the purpose of measurement. Swinging Field Dynamometer arrangement for direct torque measurement using dial type spring balance is made for individual pump. The flow rate of water is measured using measuring tank and stop watch provided.

  • Speed Vs Discharge
  • Head Vs Discharge at various speeds
  • Efficiency curves at various speed and heads

  • Closed loop water circulation
  • Compact & stand alone set-up
  • MS Excel sample calculation program on demand
  • Stainless Steel tanks and wetted parts
  • Superb painted structure
  • Simple to Operate & Maintain

Salient Features
  • Pump (2 Nos.) : Kirloskar, Capacity 1 HP Speed 2800 RPM (max.) Headd 12 m (max.)
  • Drive : DC Drive along with non-contact type Digital RPM Indicator
  • Supply Tank : Capacity 150 ltrs.
  • Measuring Tank : Capacity 100 ltrs. fitted with Peizometer Tube & Scale
  • Piping : GI/ PVC
  • Stop Watch : Electronic
  • Control Panel : With required electrical instrumentation
  • The whole Set-up is well designed and arranged in a good quality painted structure.
