Compass

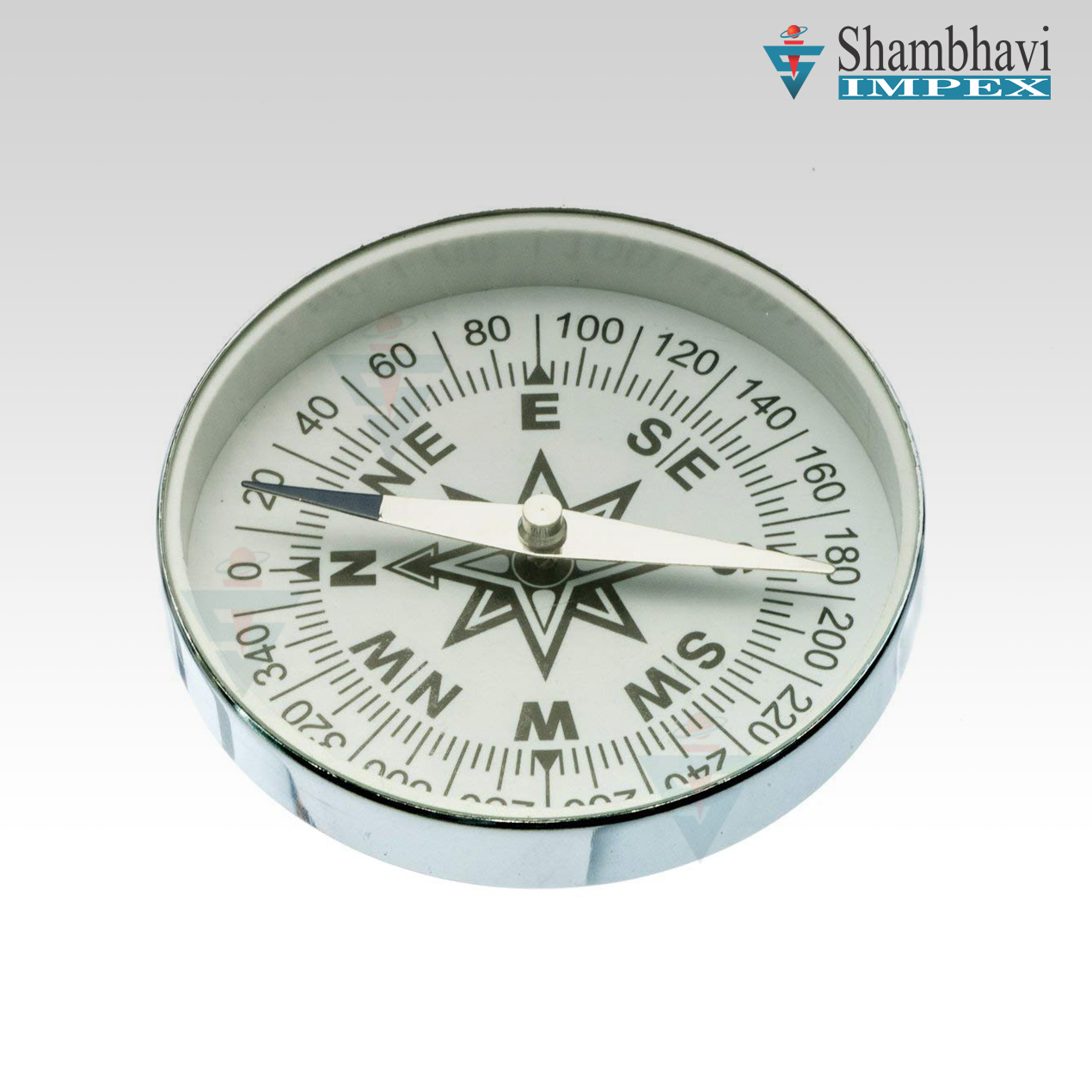

Magnet Compass - (MCom-01)

The compass card is mounted perpendicular to the needle and the entire card rotates to allow stable and accurate readings. there is a needle lift thumbscrew to secure the compass needle while in transport. the brass sundial compass is 3 3/16 inches (8 cm) in diameter, 1 5/8 inches (4 cm) tall, and weighs just 9 ounces (256 grams). this sundial compass makes a perfect desk accessory for the distinguished office. the lid is recommended for personalized engraving and the bottom of the sundial compass has room for an additional longer message.

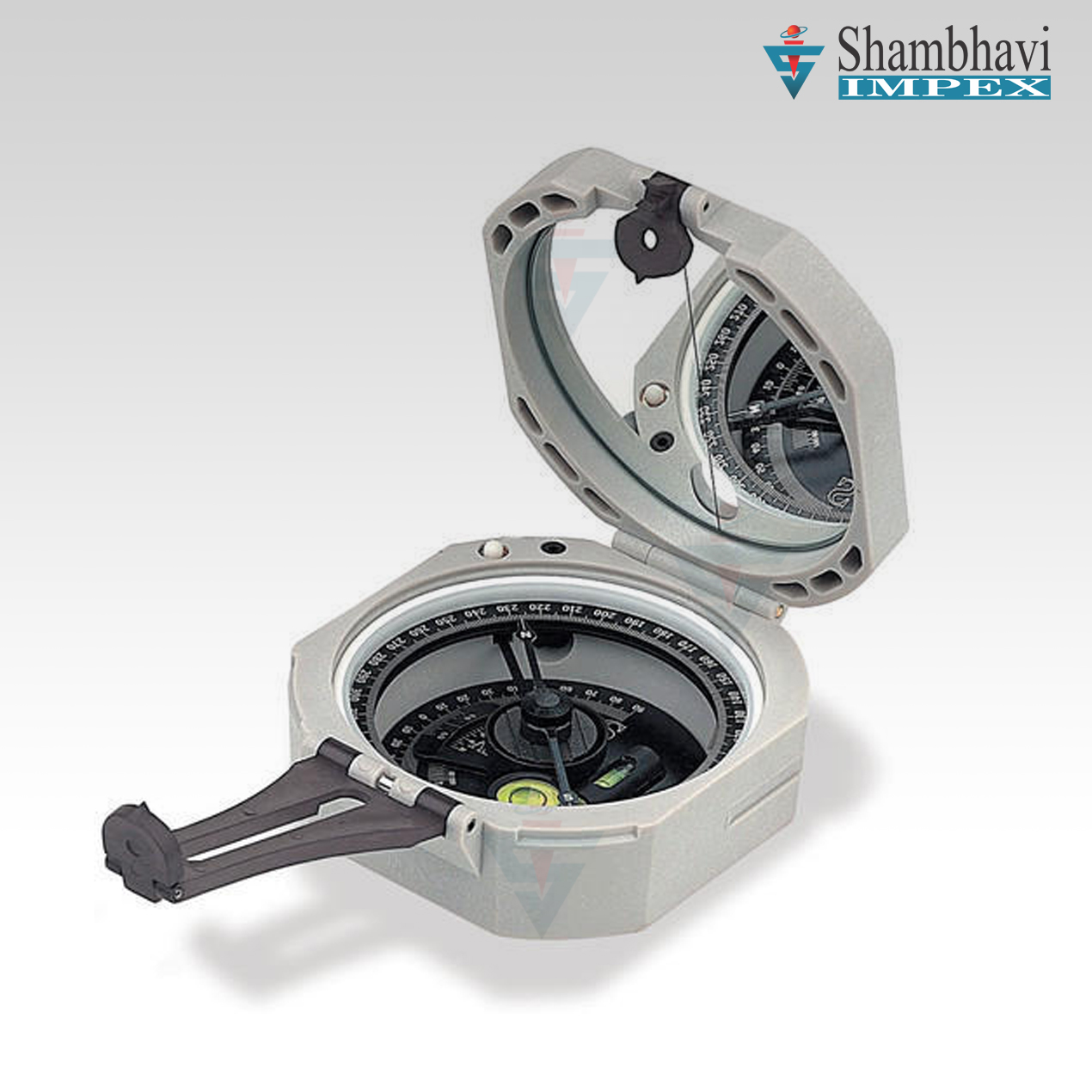

Brunton Compass - (BCom-01)

This compass differs from modern compasses, as it utilizes magnetic induction damping rather than fluid to dampen needle oscillation. It is widely used by geologists and surveyors to make accurate degree and angle measurements. The compass may be adjusted for declination angle according to one's location on the earth, in order used by geologists and surveyors to make accurate degree and angle measurements. bruton compass, precision instrument for a variety of surveying functions such as preliminary surveys, mining works etc. 50 mm needle with jewelled pivot, vertical graduation 0-90 in both directions with vernier reading direct to 10' contains a damper for magnetic needle movement, graduated 0 to 360. Complete in leather sling case. The specifications of brunton compass are: ·used by surveyors to make accurate degree and angle measurements ·utilizes magnetic induction damping. technical data: damping time of needle: <14 seconds dial scale : 1° size : 80 x 70 x 35 ( mm ) weight : 250 grams.

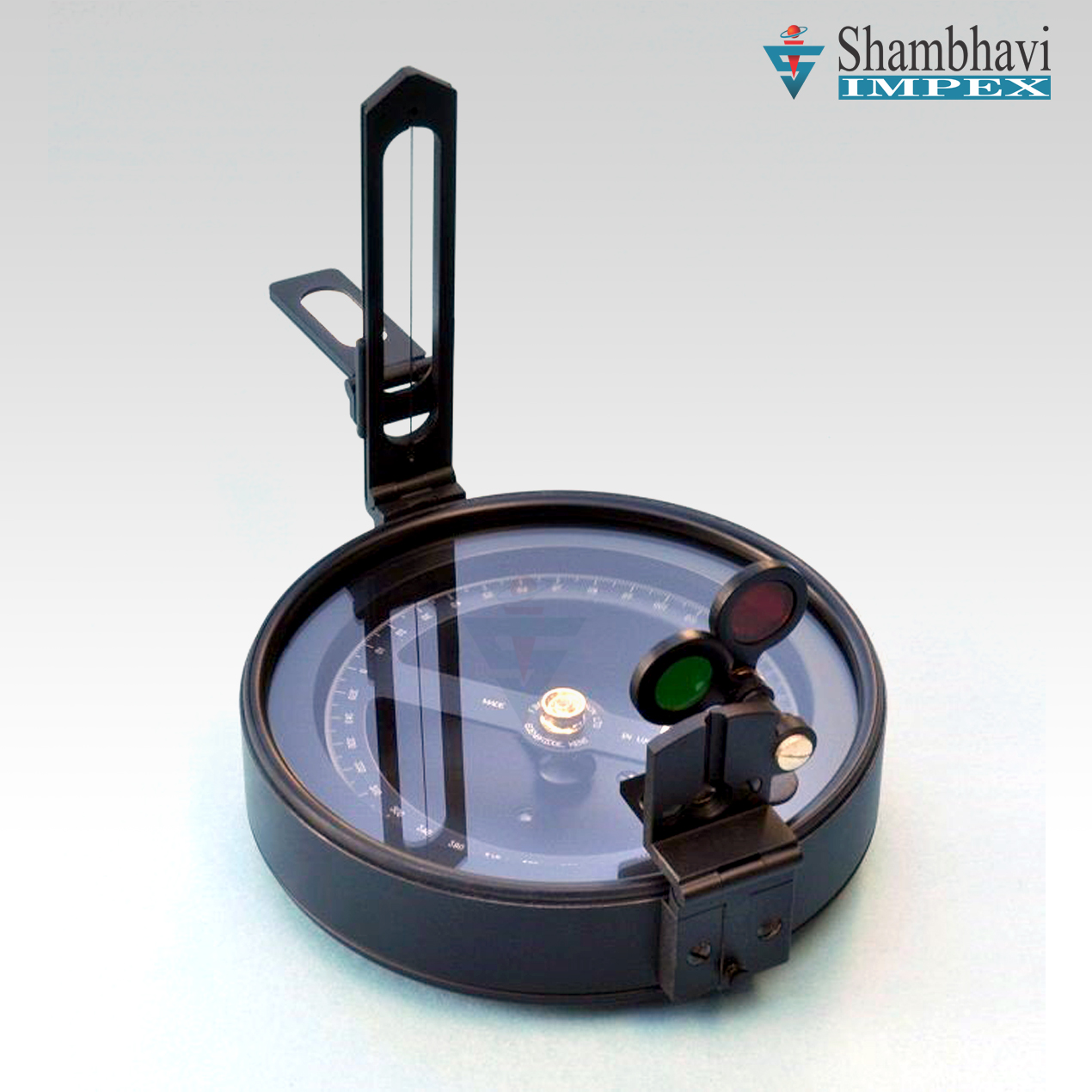

Survey Compass - (SCom-03)

Offering the best quality Survey Compass with Stand. This Survey Compass is made by high quality material and it has perfect finish.
Survey Compass made of Gun / Non magnetic Metal in a Leather case with Teak wood tripod Stand. Size of compass 100 mm. Dia As per IS specification.

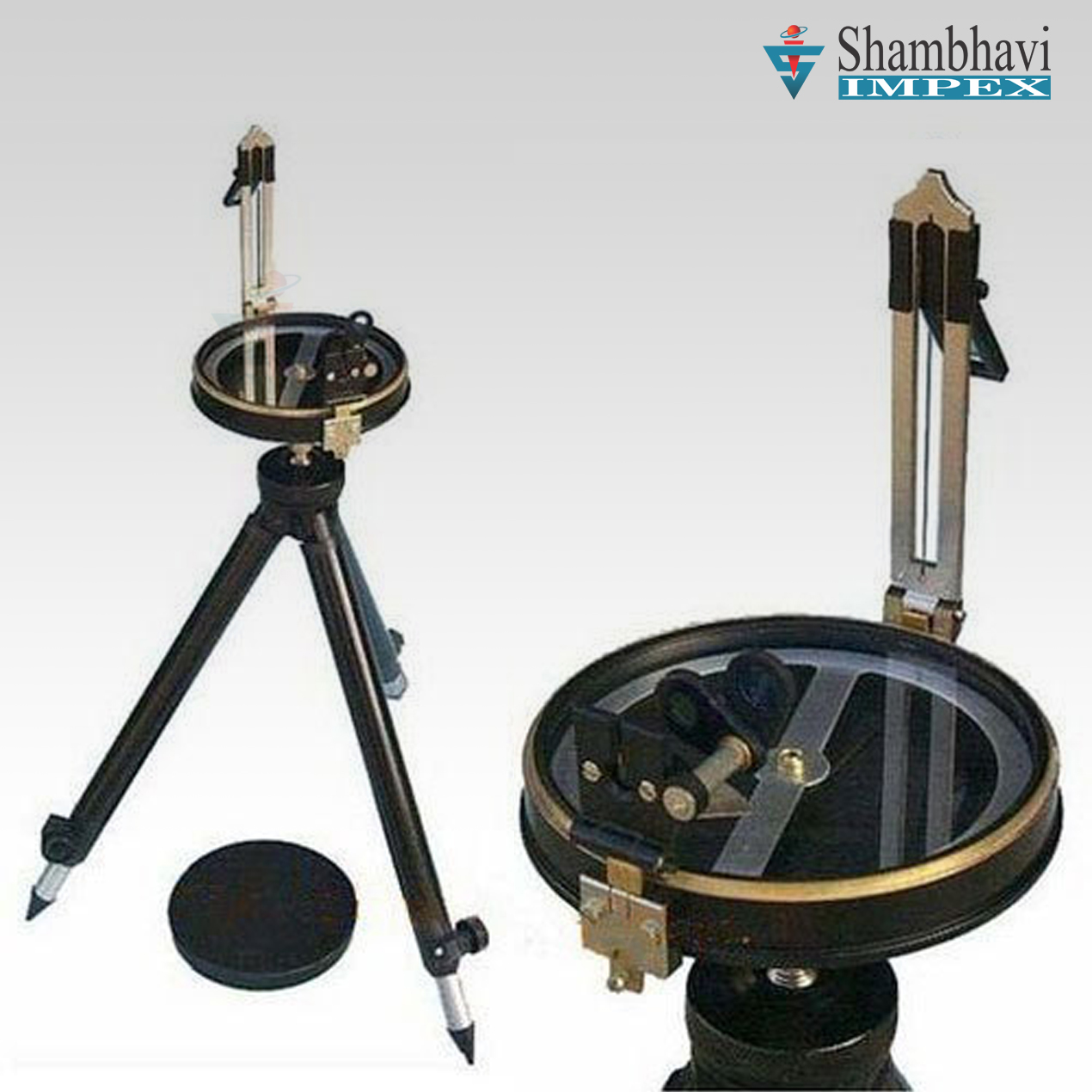

Prismatic Compass - (PCom-04)

Prismatic Compass made of Gun / Non magnetic metal in a Leather case with Teak wood tripod Stand. Size of compass 100 mm. Dia As per IS specification.

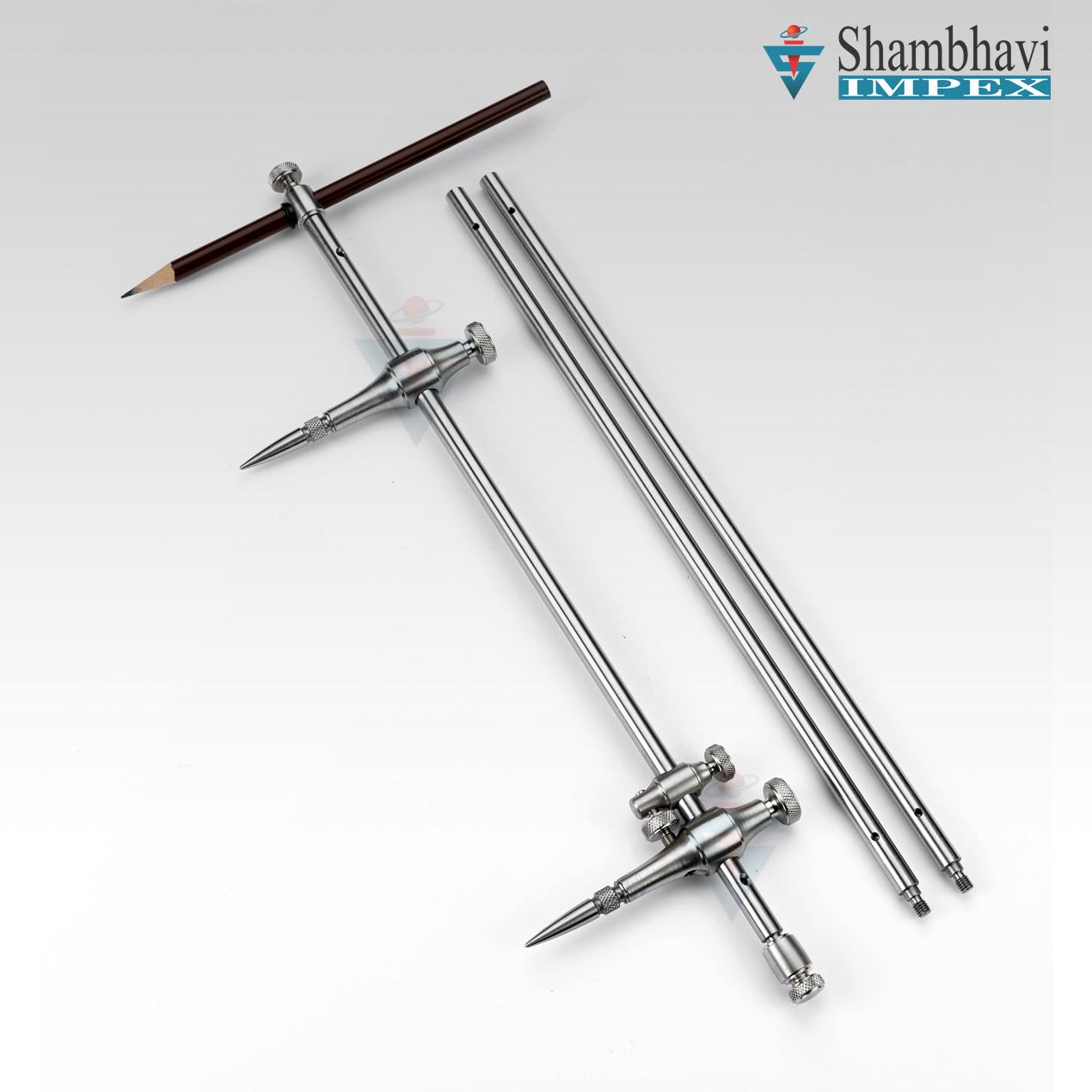

Beam Compass - (BeCom-05)

Offering the best quality Beam Compass with marking. This Beam compass is made by high quality material and it has perfect finish.

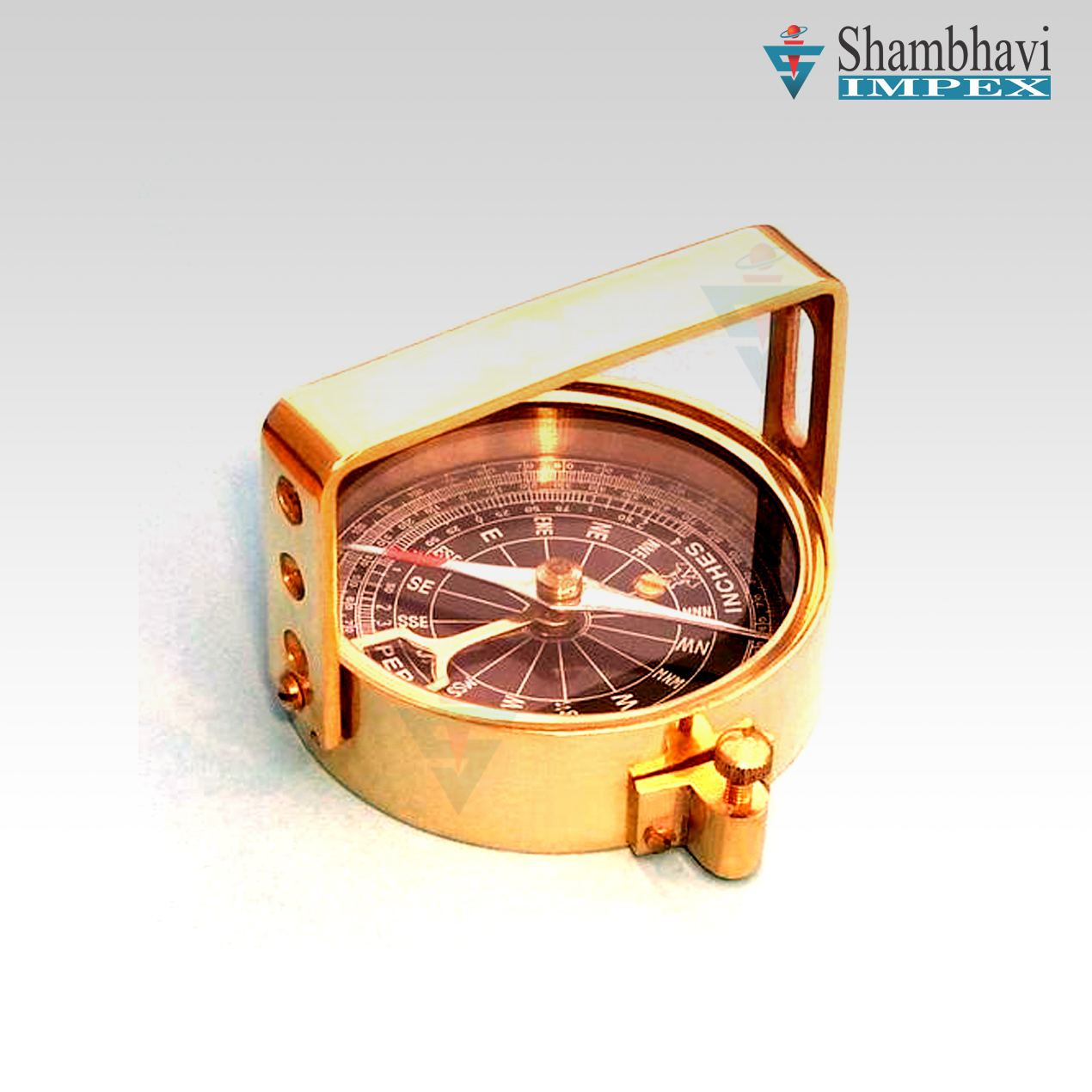

Clinometer Compass - (CCom-06)

Clinometer Handle Compass is a bringing forth of an antique Clinometer compass. The Handle Compass gets its name from its "handle" shaped sight, which literally serves two purposes: With the compass level, an object can be viewed by the peep sights to judge its magnetic heading. When tilting the compass on its side and viewing an object through the sights, its angle of altitude or declination can be found. A weighted unconvincing arm beneath the compass needle can be make out from one of three scales: Angle in degrees beneath the zenith (from straight up), angle in degrees of elevation or tilting and in inches per yard of slope. The compass has a needle lift mechanism to defend the compass jewel and the undecided arm when being transported.
