Dumpy Level

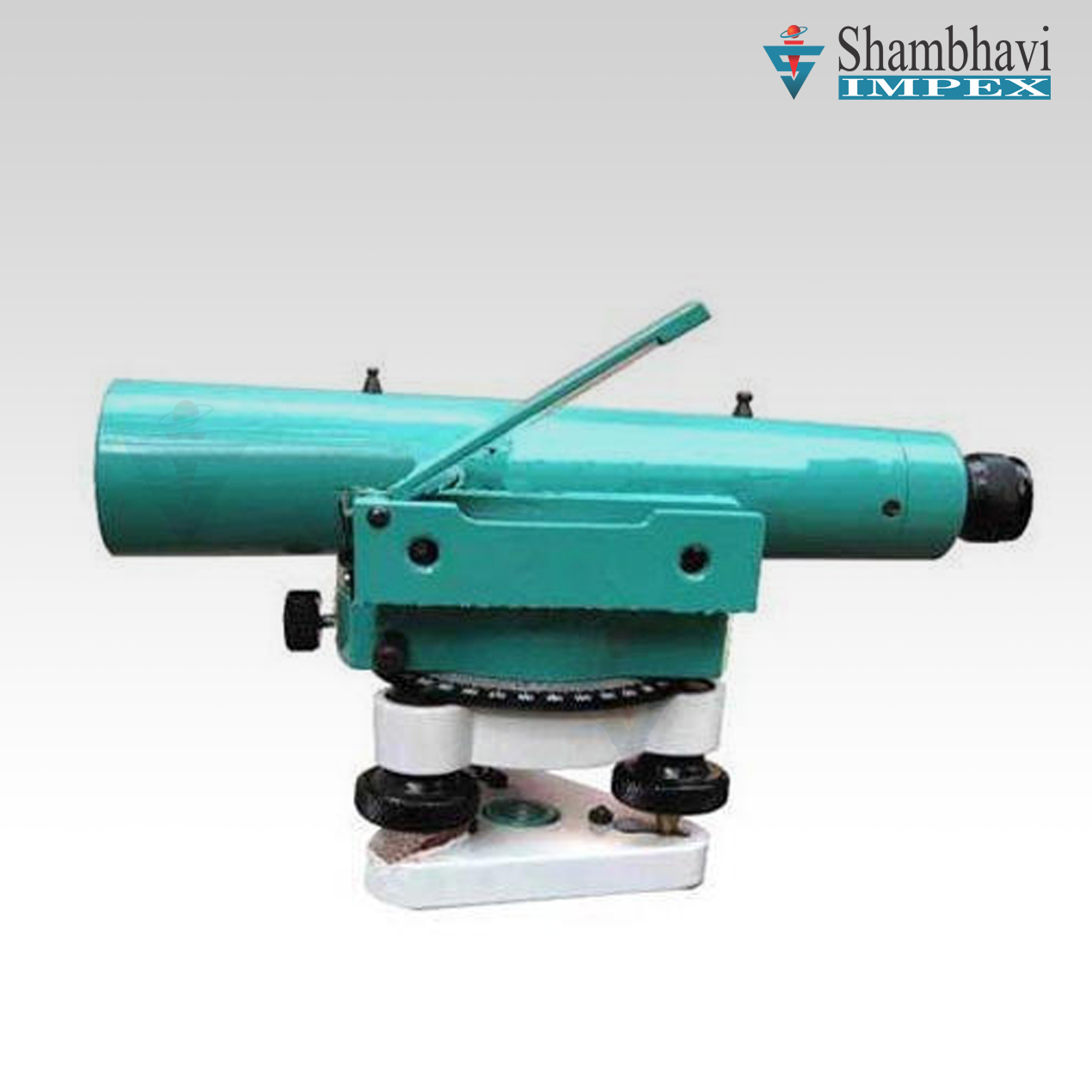

Dumpy level 300mm, internal focusing telescope with 200 meters focusing range, with erect image and desired magnification Size 9” internal focusing fitted with horizontal circle graduated to read 6 minutes with vernier and can be quickly preset to zero degree . A 45 sec. sensitive bubble is mounted on the side of the telescope and a 8 minute sensitive circular bubble in built in tribe. All moveable parts are made of gunmetal & brass supplied with all standard accessories in F.R.P box and telescopic wooden stand

• packed in water proof canvas cover.

• 12” all as above

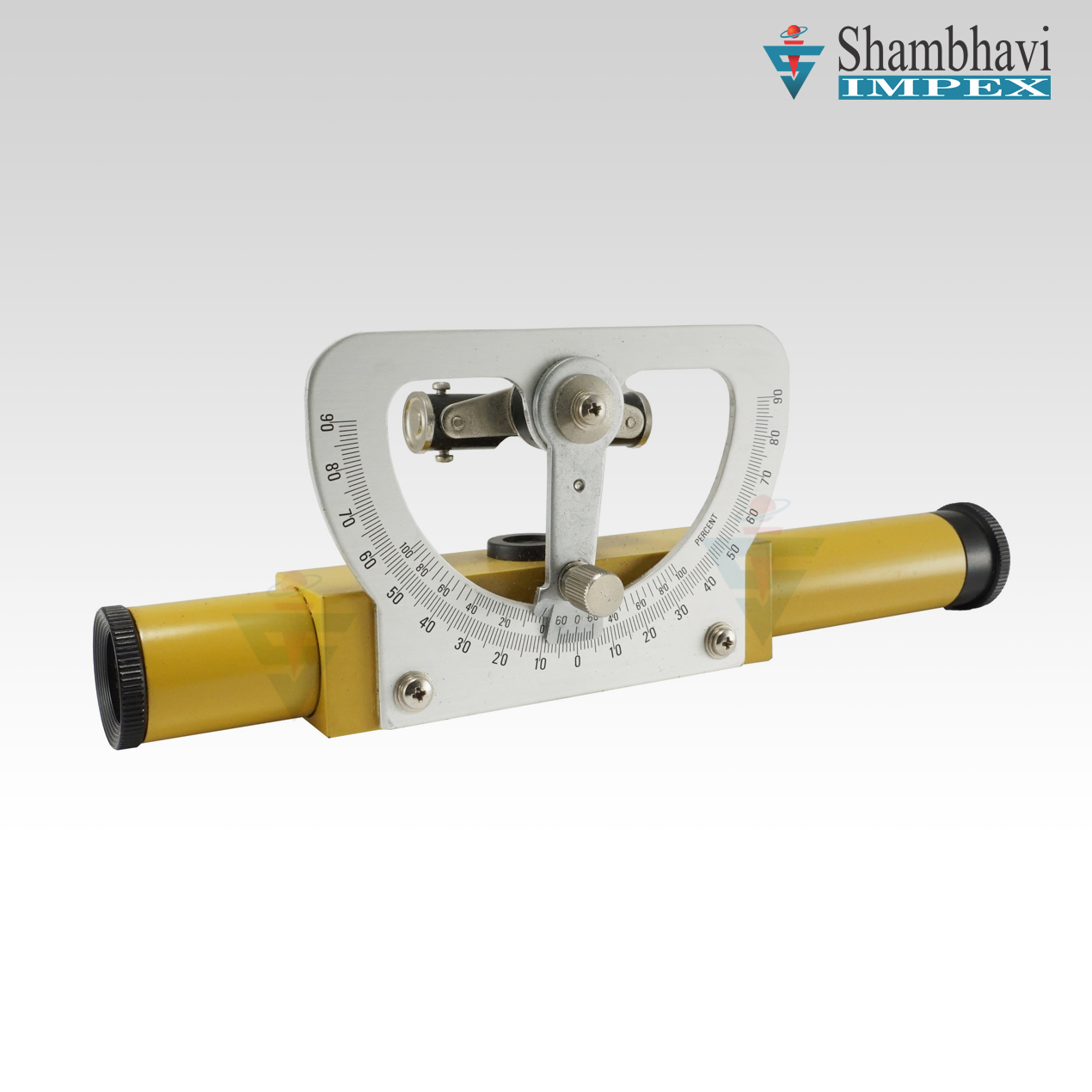

Abney Level : As per IS with high quality. The Abney Level is an engineering instrument which can be used to determine height.

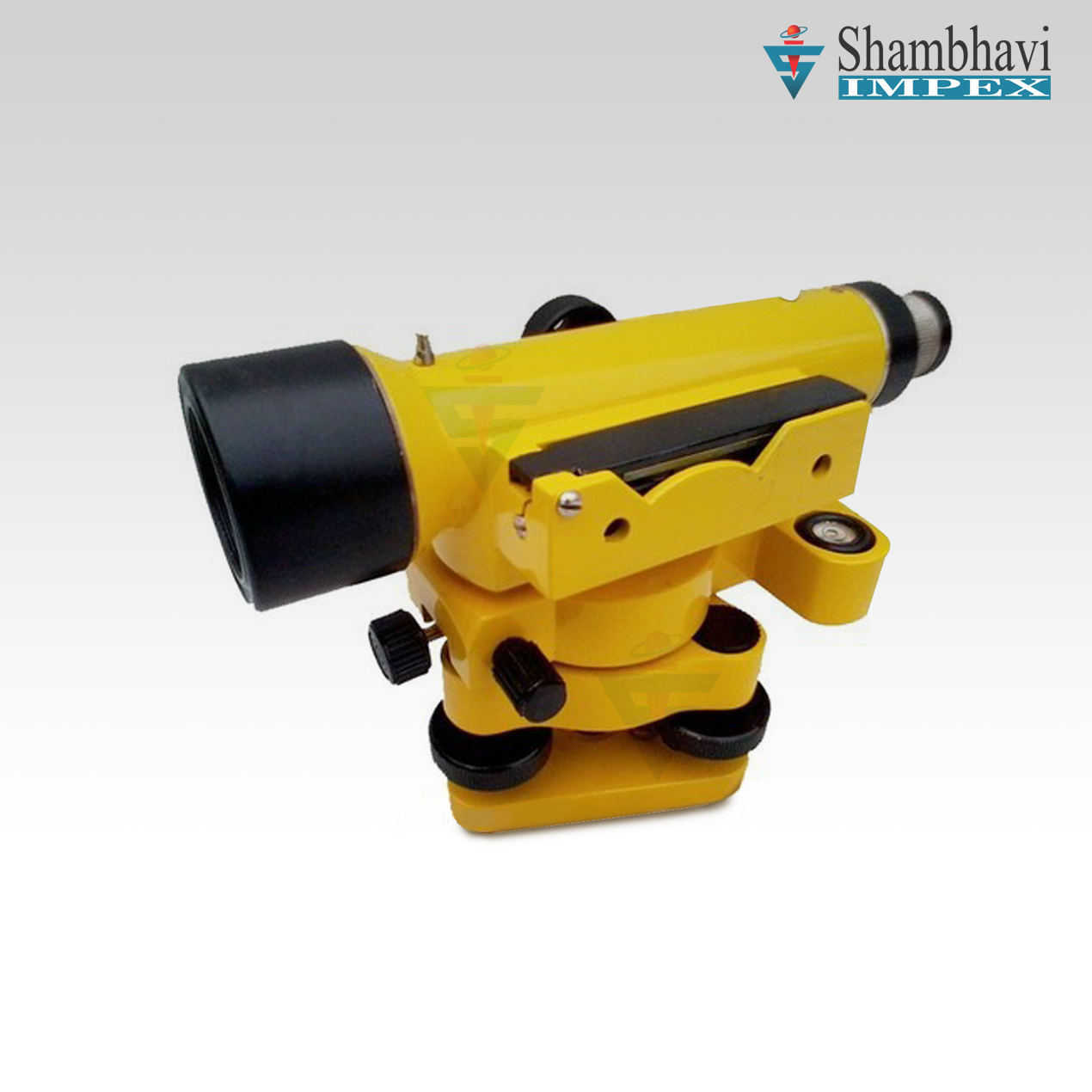

Tilting level complete with suitable case & Tripot Stand Size 178 mm (7”) Internal Focusing fitted with tilting drum graduated to read 1 : 5000 with horizontal circle A 45 sec. sensitive bubble is mounted on side of the telescope and 8 minute sensitive circular bubble is built in the tribr. All moveable parts including axis set & foot screws are made of gunmetal & brass. Supplied with all standard accessories in F.R.P. box with telescopic wooden stand. Packed in water proof canvas cover.

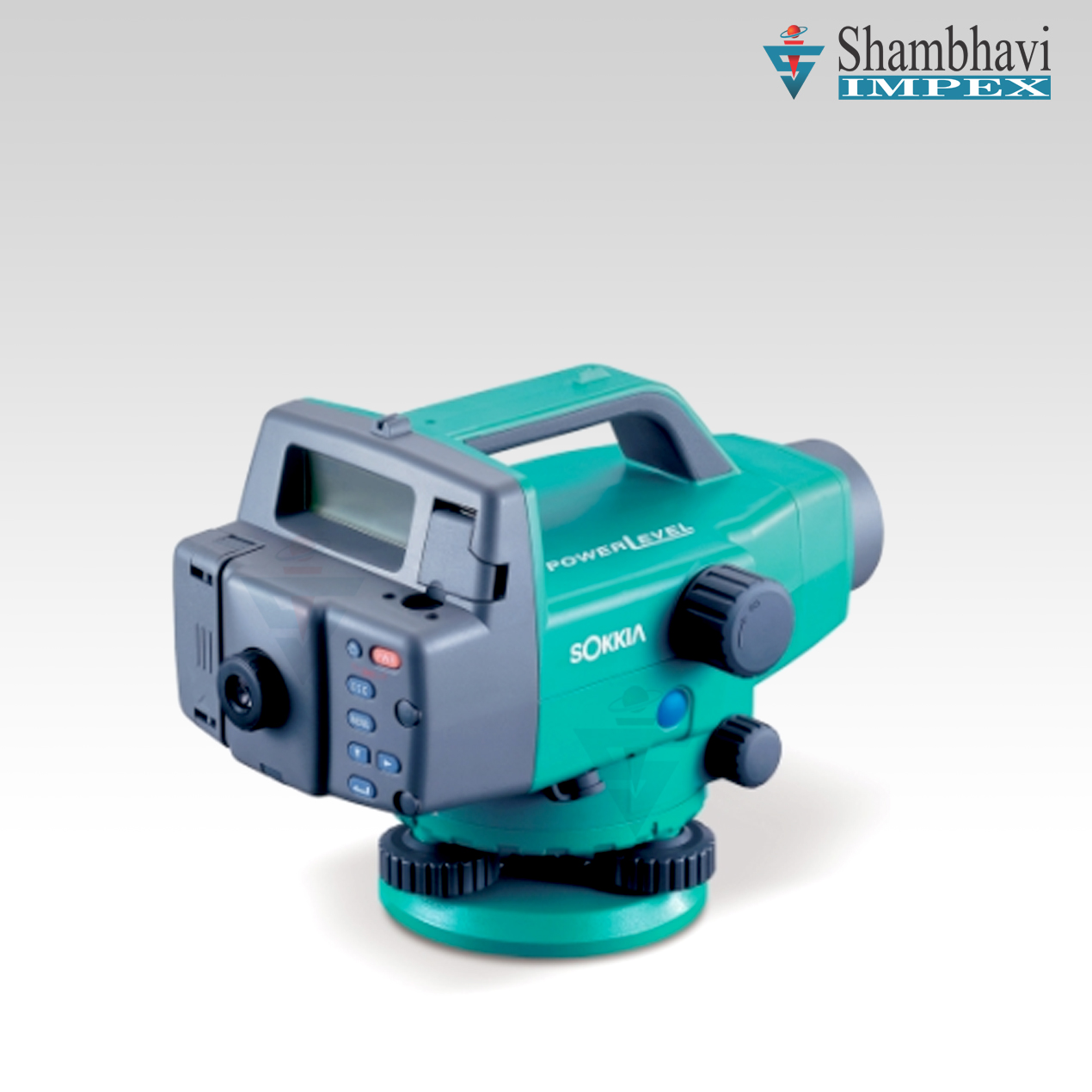

Digital Level : Having 32x Magnification, Accuracy +1mm/1Km, Effective Objective Aperture :42mm, Min. Focus 0.4m, Field Of View 1 deg. 20 min., Measuring Time 3 sec, Automatic Magnetic Compensator, Weight 2.5Kg, Tripod, Barcode and Universal Leveling Staff, Toolkit, Operation Manual, Carrying Case, Plum bob.

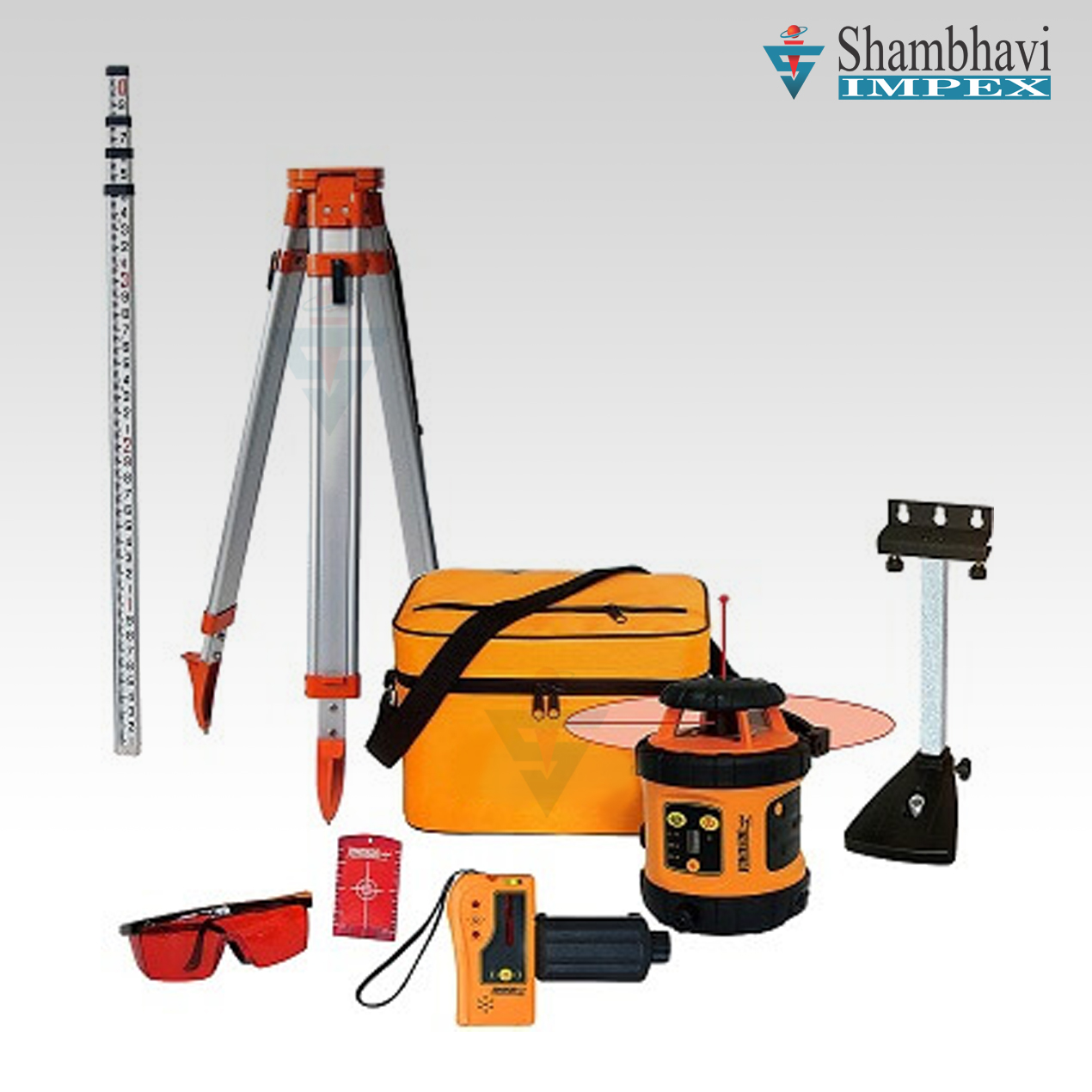

Laser Levels : Self-leveling Cross line Laser Beam 1 Horiz. & 2 Vert., Laser Diode class II, 623nm, below 1mw, Accuracy + 1mm/5m, Magnetic Compensator, working range 100m, Working temp. -10 deg cal to +50 deg cal.Self-leveling Cross line Laser- ML312 Beam 1 Horiz. & 2 Vert., Laser Diode class II, 623nm, below 1mw, Accuracy + 1mm/5m, Magnetic Compensator, working range 100m, Working temp. -10 deg cal to +50 deg cal. Main body, tripod can be collected into instrument carrying box, easy to carry
