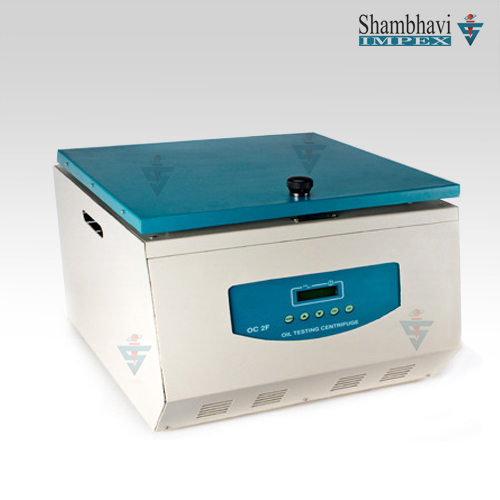

Oil Testing Centrifuge

Oil Testing Centrifuge - (SICBOTC-01)

Our oil testing centrifuge are specifically designed for Water & Sediments in crude oil, fuel oil, lubricating oil, petroleum products as per ASTM and IP standards. These tests may also include Stoddard solvent, Olefinic plus aromatic hydrocarbons in petrolleum distillates, Unsulfonated residue of petroleum plant, Residue in liquified petroleum (L.P.) & Trace sediments in lubricating oil. The unit is fabricated from steel and epoxy coated.

Salient Features

Soft Touch Keypad.
Brush Less and low noise AC Induction Motor and Inverter drive.
Programmable Microprocessor control
25 Program memory
Speed with 100 RPM Increment
1 to 99 minute preset timer with 1 minute increment
Programmable Acceleration and deceleration time in the range of 40 to 450 seconds.
LCD displays include working speed and remaining time.
Imbalance safety system and auto-cut off mechanism
Zero Start Interlock
Safey Lid lock
Dynamic Brake.

Technical Specification

Model	SIMBOTC-01
Max. Speed	3000 RPM
Max. RCF	1480 xg
Max. Tube Size	100 ml
Max. Capacity	400 ml.
Width	505 mm.
Depth	580 mm.
Height	525 mm.
Weight	70 kg.
