Capping Set

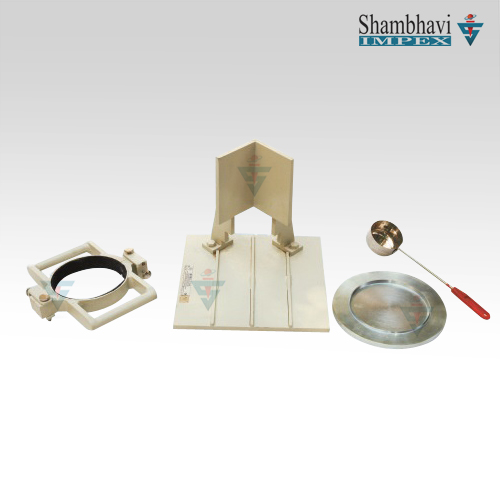

Capping Set - (SICCCS-01)

Capping Set: For correct compressive strength of concrete cylinders, the end surfaces of the specimen must be truly flat. If they are not using capping compound and a capper, the faces are plastered flat. Capping set can be used for cylindrical specimen like concrete cylinders of cores. It can be used in laboratory or in field.

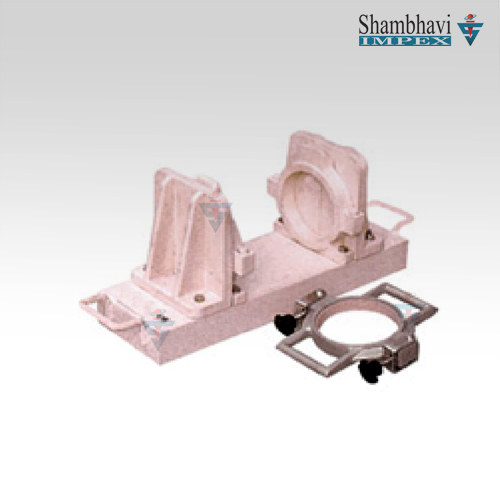

Capping Set- Horizontal - (SICCCS-02)

Capping Set- Horizontal : For 15cm dia x 30cm length cylinders. specifications : the set comprises of a cylinder capper, a cylinder carrier and a ladle. The cylinder capper consists of a base on which two accurately machined plates are mounted vertically. Once plate is firmly fixed and the other one is adjustable horizontally. Two plates are provided with holders for holding the cylinder in position. The holders are split and the bottom half of each holder is fixed firmly and the top half of each is removable and bolted down to the lower half. On the upper parts of the vertical plates 'v's are provided for pouring the capping compound. Two spacers are also provided. Complete with cylinder carrier and ladle for molten compound.
Salient Features
  • For 100mm dia x 200mm length cylinders.
  • Specifications : Same as above but for use with specimens 100mm dia X 200mm long

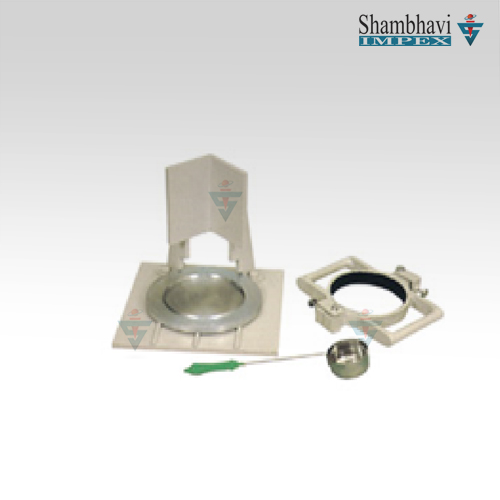

Capping Set - Vertical - (SICCCS-03)

Capping Set - Vertical : For capping compression cylinder specimens. This apparatus can be used both in the laboratory and in the field. The specimens capped in this apparatus have plane parallel faces.
Salient Features
  • Specifications : For cylinders 150mm dia x 300mm long. Consists of a base with an upright. The upright serves as a guide for positioning the capping plate and the cylinder. The 19mm thick capping plate is machined accurately. There is a recess in the plate for keeping the molten capping compound and to position cylinder. Complete with cylinder carrier and ladle.
  • For cylinders 100mm dia X 20mm long: Same as above but for cylinders 100mm dia X 200mm long

Cylinder Carrier Accessories With Capping Set - (SICCCS-04)

Other Accessories With Capping Set : Cylinder carrier : for carrying the concrete cylinders in the laboratory and in the field. Double handles make it easy to hold the cylinder during capping operations. Complete with snap clamp and cushioning lining. Can be used both for 15cm dia and 10cm dia cylinders. capping mould : for capping the concrete cylinders, it consists of an accurately machined plate with a recess for 15mm dia specimen. warmer : an electrically heated and thermostatically controlled bath for melting the capping compound. Supplied with cover and handle. Suitable for operation on 230 volts A. C. Single phase. capping compound : used for capping the ends of concrete cylinders to be tested. Available in packs of 5 kg. bowl & ladle : metallic bowl is used to carry the capping compound and ladle is used to pour molten capping compound into the groves between specimen and capping plate. Supplied as set.
