Flow Table

Flow Table IS:6932 - Hand Operated | Flow Table IS:1199-1959 Hand Operated | Flow Table IS: 1199 - Motorized | Flow Table IS:5512 - Hand Operated | Flow Table IS:5512 - Motorized

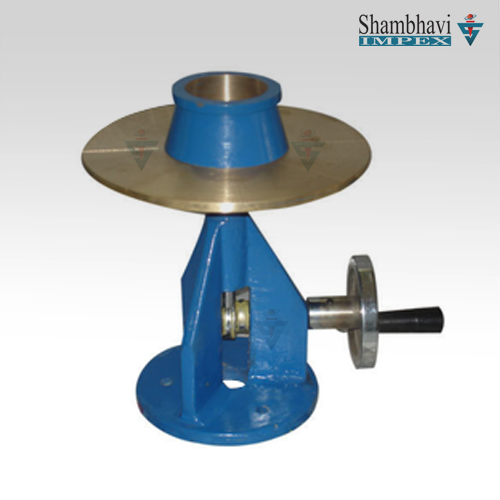

Flow Table IS:6932 - Hand Operated - (SICCFT-01)

Flow Table IS:6932 - Hand Operated
This is used for determining the workability of building limes.
Salient Features
  • Specifications : The flow table consists of a 30cm. dia ground and polished steel plate with three inscribed annular circles. 7, 11 and 19cm. dia. The table top is arranged for a free fall of 12.5mm by a cam action. Supplied complete with one brass conical mould, 65mm I.D. at base and 40mm I.D. at top, height of the mould 90mm.


Flow Table IS:1199-1959 Hand Operated - (SICCFT-02)

Flow Table IS:1199-1959 Hand Operated
It is used for determining the flow of cement concrete.
Salient Features
  • Specifications : Consists of a steel table top 76.2cm (30 inch.dia), finely machined. The integral cast ribs are designed for support and strength. The stand is fabricated out of cast iron and is of study construction. Holes for mounting in foundations are drilled in the base plate. The ground and hardened steel cam is designed to lift and drop the table by 12.5mm. The hand wheel makes it simple to operate the table. Supplied with one conical mould with handles, 12cm. height having 17cm. top internal diameter and 25cm. I.D. at the base. Complete with a tamping rod 16mm. dia x 600 mm long one end rounded.


Flow Table IS: 1199 - Motorized - (SICCFT-03)

Flow Table IS: 1199 - Motorized
Specifications : same as above but electrically operated, to raise and drop the table top, approx. 15 times in 15 seconds. Suitable for operation on 230 volts, 50 cycles, A.C. Supply.


Flow Table IS:5512 - Hand Operated - (SICCFT-04)

Flow Table IS:5512 - Hand Operated
This is used for measuring the consistency of pozzolanas and also cement mortar and hydrated lime.
Salient Features
  • Specification : It consists of a machined brass table top 250+/-2.5mm. dia mounted on a rigid stand. The table top is reinforced with equally disposed ribs and allowed to conical brass mould 100mm I.D. top dia. and 50mm high.
  • Accessorie: Mild steel plate 25mm. thick and 25 cm. square for fixing to the underside of the base.

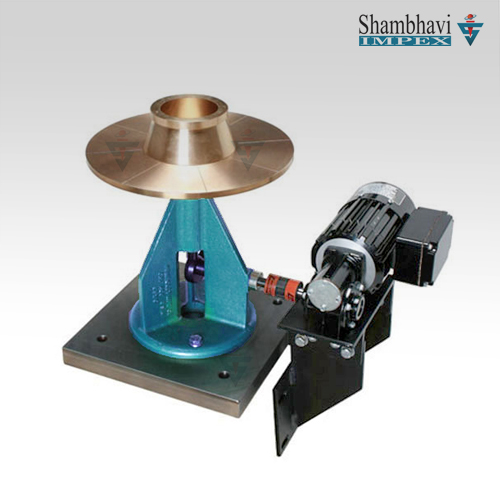

Flow Table IS:5512 - Motorized - (SICCFT-05)

Flow Table IS:5512 - Motorized
Same as above but electrically operated. Fitted with a motor. Connected to the cam shaft through a reduction gear to give approximately 100rpm. Suitable for operation in single phase 230 Volts, 50 Cycles, A.C. supply.
