Free And Force Vortex Apparatus

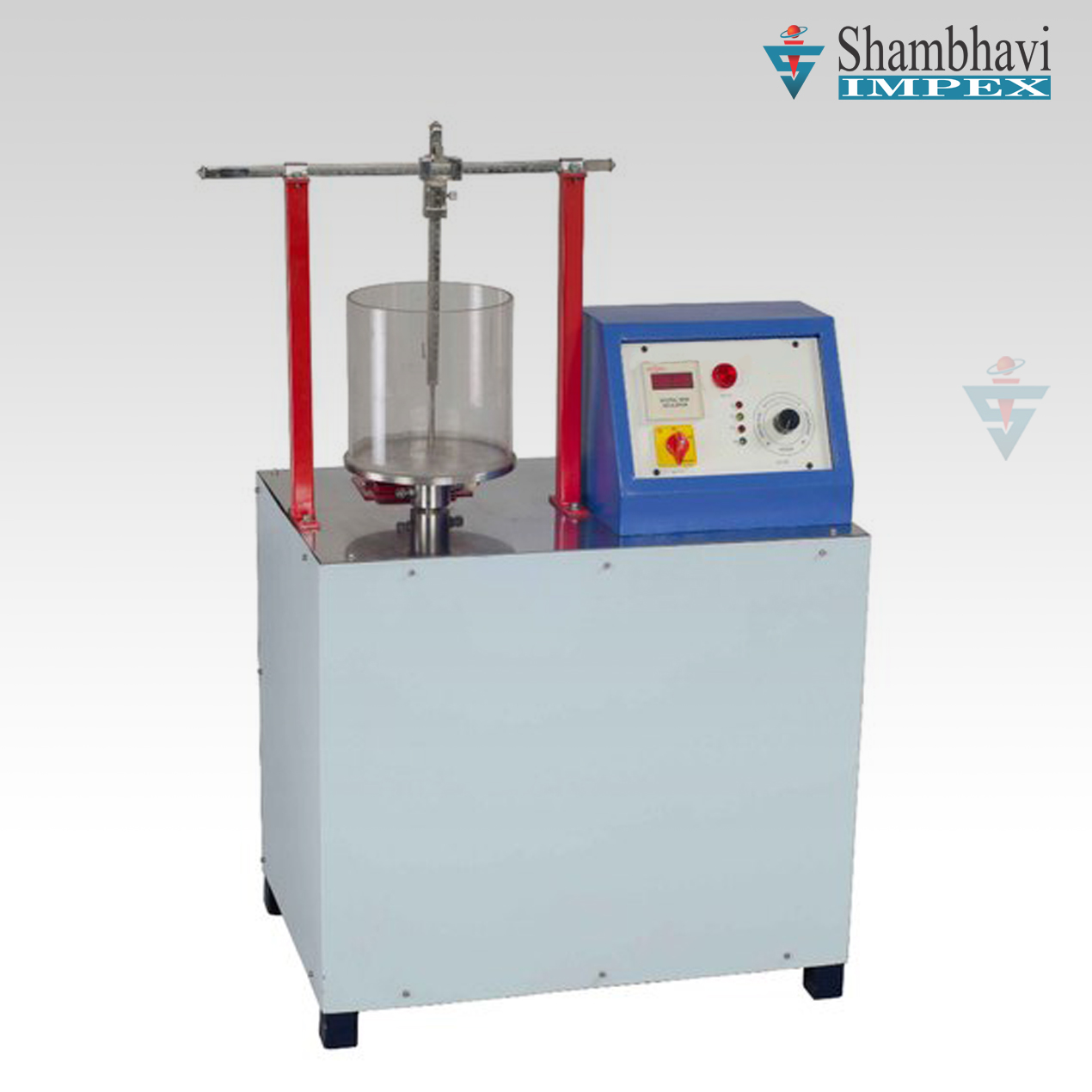

Free And Force Vortex Apparatus - (SIMFFFV-10)

The experimental set up consist of a circular transparent cylindrical tank, which four circumferential jets have been placed along the circumference of the cylinder near its bottom which helps in the formation of free vortex. It is assumed that the torque exerted by these jets is negligible. The Orifice is reducing bush so that a reduced diameter can be investigated. The plate can also be rotated with the help of a variable speed motor so that the cylinder rotates about its vertical Axis with the help of a V belt and forced vortex is formed. Conditions wear allowed to steady state and the depth of flow at any particular point was observed not to change over a period of time. The experimental procedure involves measurement of resulting free surface that represents the variation of the sum of the pressure and datum head.
EXPERIMENTS - To plot the surface profile of a fret and forced vonex by measurement of the surface profile coordinates and to show that total energy is constant throughout vortex.
Salient Features
  • Cylinder : Material Acrylic Dia. 200mm approx.
  • Height of Overflow Point : 150mm
  • Drive : FHP variable speed motor, speed way
  • The whole Set-up is well designed and arranged in a good quality painted structure.
