Impact Of Jet On Vane Apparatus

Impact Of Jet On Vanes Apparatus - (SIMFVA-07)

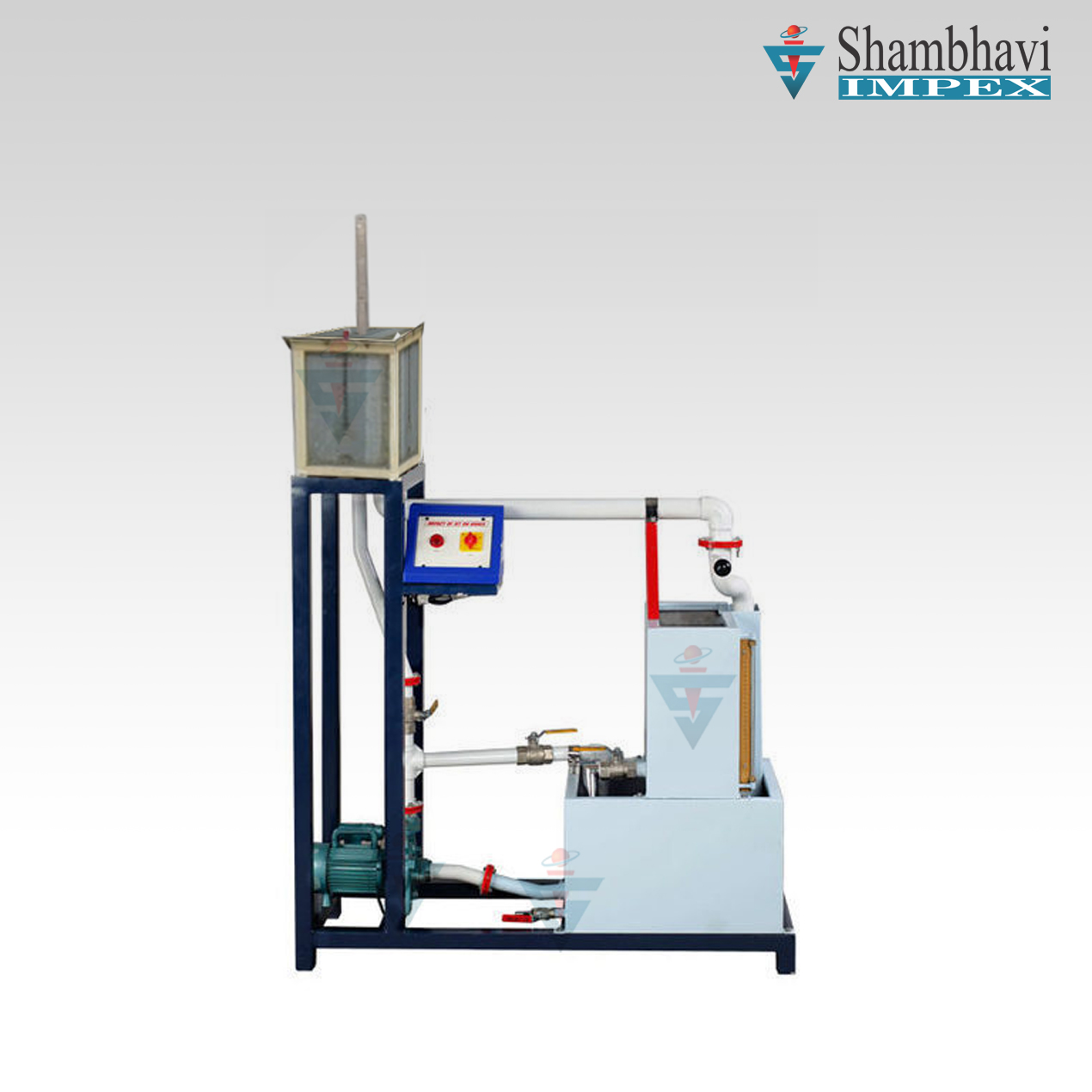

The Set-up consists of two sided clear fabr1catt0n. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem, which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a Compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided a flat plate and a hemispherical cup.
EXPERIMENTS - To measure the force developed by a jet of water impinging upon a different targets (Hemispherical & Flat Plate> and comparison with the forces predicted by the momentum theory.
Salient Features
  • Test Plates : Material Brass (2 Nos.)
  • 1. Flat Plate
  • 2. Hemispherical Cup
  • Nozzle : Material Brass
  • Stainless Steel Chamber : Having of Opposites sides made of glass
  • Flow Measurement : Using Measuring Tank with Peizometer,
  • Capacity 40 ltrs.
  • Sump Tank : Capacity 60 ltrs.
  • Stop Watch : Electronic
  • Control Panel : On / Off Switch, Mains indicator etc.
  • The whole set-up is well designed and arranged in a good quality painted Structure.
