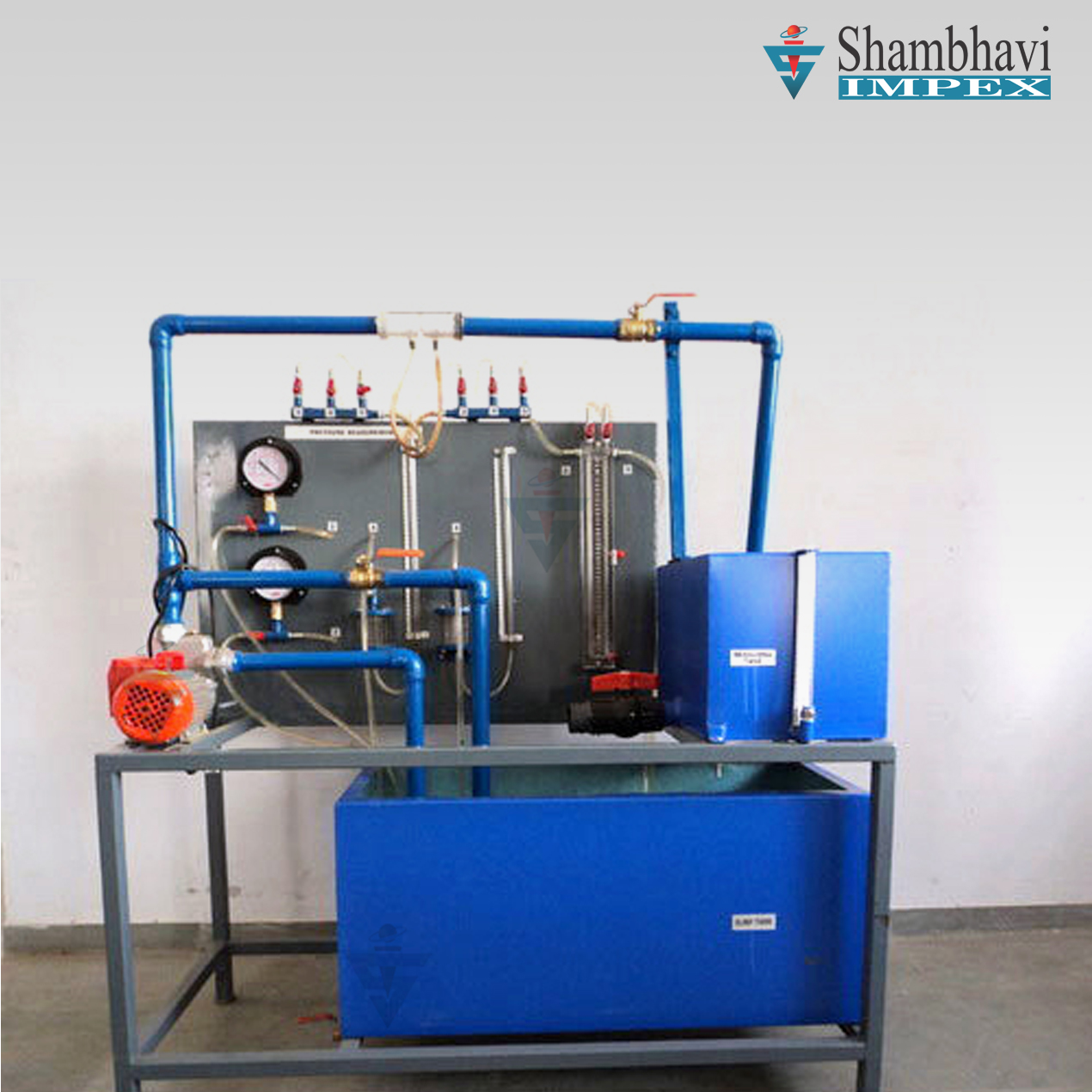

Study Of Flow Measurement Device

Measurement of liquid flow is required at various places and for various purposes. Different types of flow measuring devices are used depending upon the system conditions, accuracy required, skill of operator and economy desired. The unit demonstrates some of the flow measurement devices. SPECIFICATIONS (1) lntergratiry Type Turbine flow meter. (2) Glass Tube Rotameter. 13) Orificemeter differential manometer. (4) Venturimeter (5) Measuring Tan (6) Slop Watch (Digital) (7) 112 HP Monoblock Pump. (8) A differential manometer. (9) Sump tank of suitable capacity.
