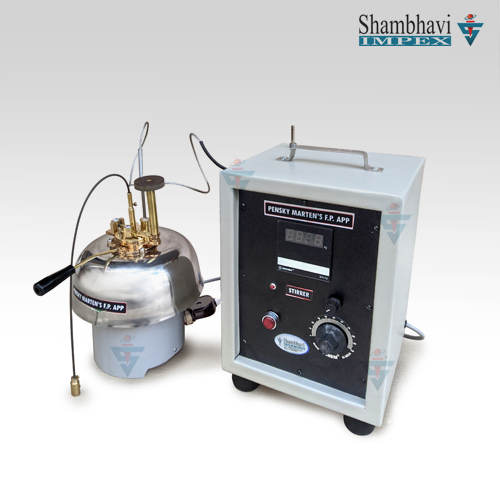

This apparatus is made as per IP 34, ASTMD-93 and IS 1448 (Part I) 1270 (P.21) and IS 1209-1953 method B. Used for finding out Flash Point above 70°C and below 300°C. The having Oil Test Jet / Gas Test Jet flammable device, stirrer with flexible shaft. The Assembly rests in Air Bath which is covered with Dome shape metal top. The cup is fitted with insulated Handle and locking arrangement near Cup flange. The assemble is kept on round shape electric heater with Separate temp. regulator. Suitable for operation on 220 Volts 50 cycles AC Circuits.
- Pensky Martens Flash Point Apparatus electrical heated with Energy Regulator Oil Test Jet
- Pensky Martens Flash Point Apparatus electrical heated with Concealed Hot Plate & Oil Test Jet
- Pensky Martens Flash Point Apparatus with Energy Regulator Geared Motor Stirrer (120 R.P.M) Oil Test Jet
- Pensky Martens Flash Point Apparatus with Electronic Temp. Indicator and Regulator Oil Test Jet
- Pensky Martens Flash Point Apparatus with Electronic VOLTAGE VARIAC and digital temp. Indicator and constant speed stirring Device Oil Test Jet
- Semi Automatic Flash Point Apparatus with Electronic Temp. Controller, Automatic Dipping cycle with Remote Control Oil Test Jet and Gas Test Jet
- Fully Automatic Flash Point apparatus Micro Controlled based with LCD Display Temp. Range from 80C to 350 C. 0.1C to Direct Resolution Automatic Stirrer Gas test jet System
Note:All above models can be supplied with Gas Test Jet system with reducing socket in place of Oil Jet Flame at extra cost.
Salient Features
- Optional Accessories
- Open clip for converting close model to open cup test model as per IP 35
- IP 15 C Low Range Thermometer (-7 / 110 C x 0.5°C)
- IP 16 C High Range Thermometer (90 x 370 C x 2C)
- Polish Wooden case
- Spare cup with handle
- Spare Cover Assemble
- Spare Nichrome Heating element
- Spare Concealed Hot Plate with housing
