Consolidation Apparatus

Consolidation Apparatus - Single Gang Model (Odeometer) - (CA-01)

Consolidation test is uni-dimensional test considered extremely important in soil mechanics. Sample taken from adjacent areas of a single site show differential settlement even when tested using same techniques. Soil of similar strength may show varying consolidation. Samples are very carefully prepared and vertical settlement of the specimen in saturated or drained conditions carefully recorded when known load is applied.
Salient Features
  • Specifications : The standard outfit comprises of the following items. Loading unit, maximum capacity 20 kg/cm sq. having a loading yoke connected to a lever arm with a counter balancing adjustment and having a lever ratio of 1:1, the whole assembly being mounted on a sturdy steel frame stand. The loading unit is so designed that it can be used for consolidation cells of different diameters as well as different dia floating ring type consolidation cells. Fixed ring type consolidomenter (Odeometer) cell assembly for testing 60 mm dia x 20 mm thick specimen comprising: Fixed ring for specimens 60 mm dia x 20 mm thick with guide ring. Top and Bottom Porous stones for 60 mm dia specimen. Perforated Pressure pad, Chanelled base with water inlet and Gasket. Flanged Water Jacket, water reservoir with plastic tube and pinch cock. Set of weights to give a pressure of 10 kg/cm.sq. on 60 mm dia specimen, comprising: 7 Nos. 0.05 kg/sq.cm, 5 Nos. 0.1 kg/sq.cm., 6 Nos. 0.2 kg/sq.cm., 6 Nos. 0.5 kg/sq.cm., and 5 Nos. 1.0 kg/sq.cm.
    Supplied complete as above but without dial gauge.
    Accessories : Dial Gauge 0.002 mm x 10 mm. Extension piece, 40 mm long. Test forms pad of 50 for "Censolidation Test Plot" Test forms pad of 50 for one Dimensional Consolidation.


  • Optional Accessories : Varying head stand pipe, 50 cms. long with mm.scale.
    Fixed ring type of consolidometer (Odeometer) cell assembly for 50 mm dia x 20 mm thick specimens complete with fixed ring guide ring, pair or porous stones, perforated pressure pad, channelled base, gasket and flanged water jacket.
    Set of weights to give a pressure of 10 kg/sq.cm., on 50 cm. dia specimens.
    Fixed ring type of consolidometer (Odeometer) cell assembly for 70 mm dia x 20 mm thick specimens, complete with accessories as above.
    Set of weights to give a pressure of 10 kg/sq.cm., on 70 cm. dia specimens.
    Fixed ring type of consolidometer (Odeometer) cell assembly for 100 mm dia x 25 mm thick specimens, complete with accessories as above.
    Set of weights to give a pressure of 10 kg/sq.cm., on 100 mm. dia specimens.
  • SINGLE GANG
  • THREE GANG

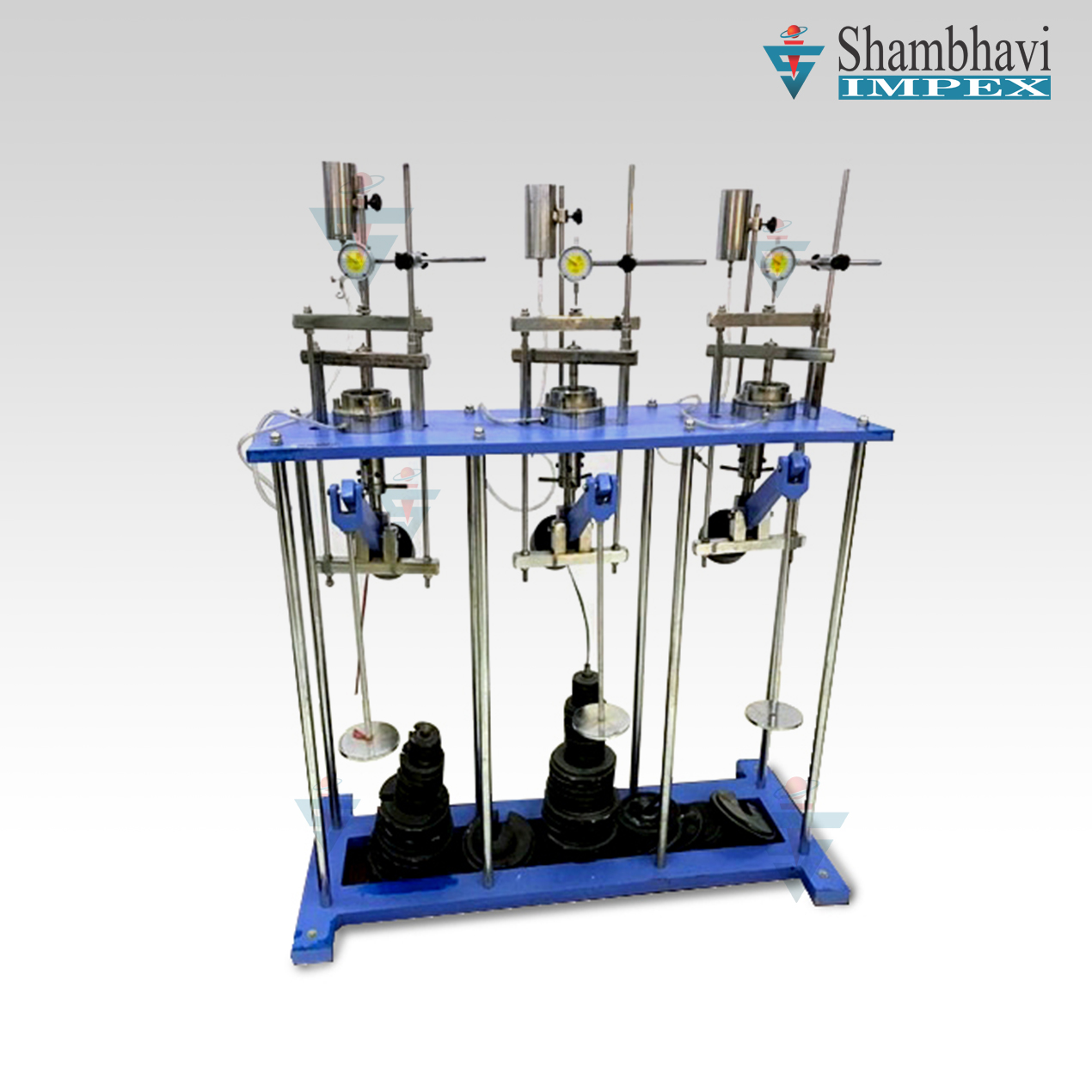

Consolidation Apparatus - Three Gang Model (Odeometer) - (CA02)

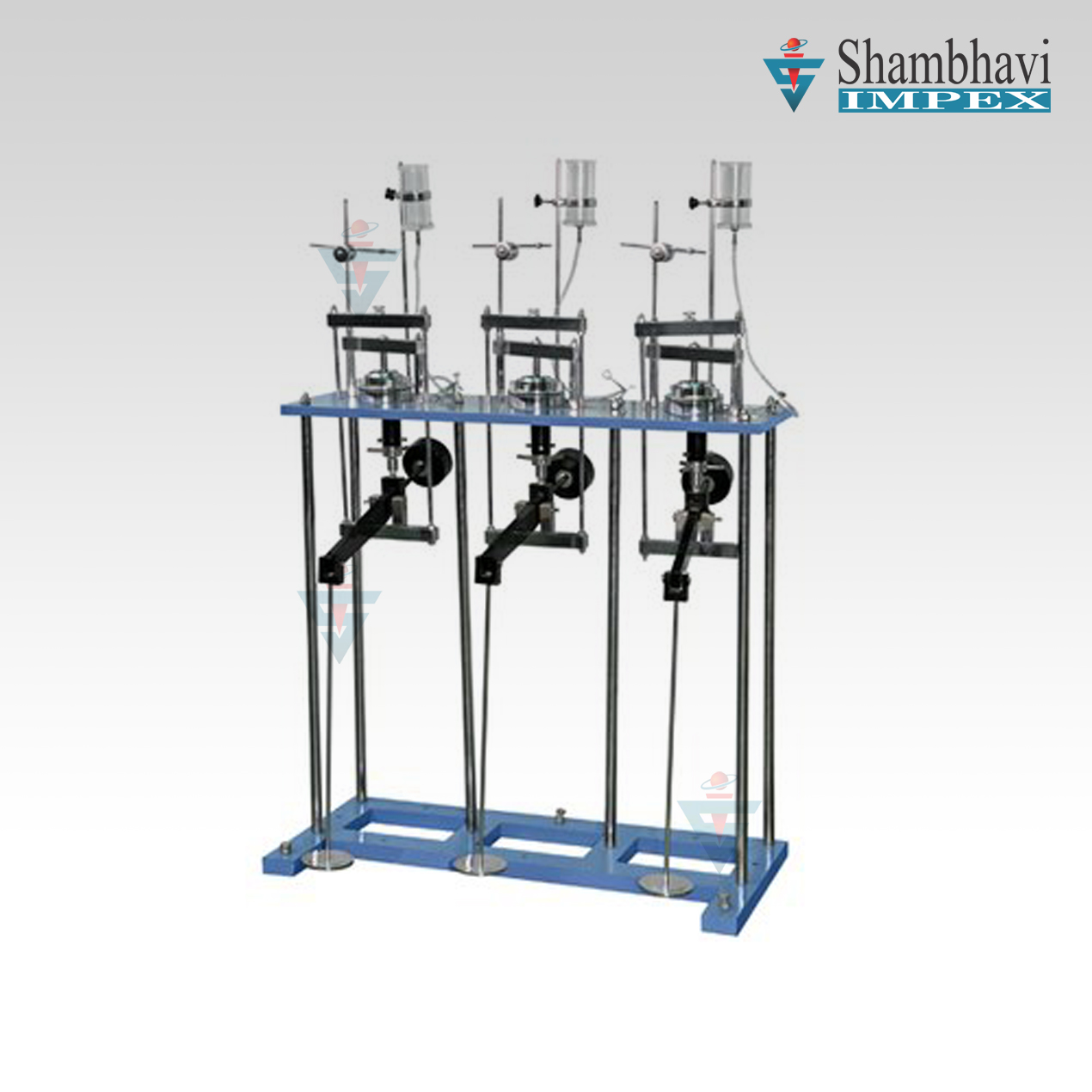

Consist of 3 consolidation test assemblies mounted on a single frame. Complete wigh 3 sets of consolidometer cell assembly for 60 mm dia samples and three sets of weights each giving 10 kg/sq.cm. on each sample.
