Home » Product Range »  Civil Engineering Equipment » Soil Testing Equipment » Test Sieves


Test Sieves

Test Sieves - (TS-01)

Test sieves is a common laboratory requirement. Sieves are used for sieving of chemical powders, medical powders, aggregate, sand soil and cement etc. These sieves are manufactured as per various standards like ISS, BSS, ASTM, DIN etc. Sieves are commonly used for gradation and particle size determination. these are mainly made of brass frame and g. I. Frame of dia. 200mm, 300mm & 450mm.

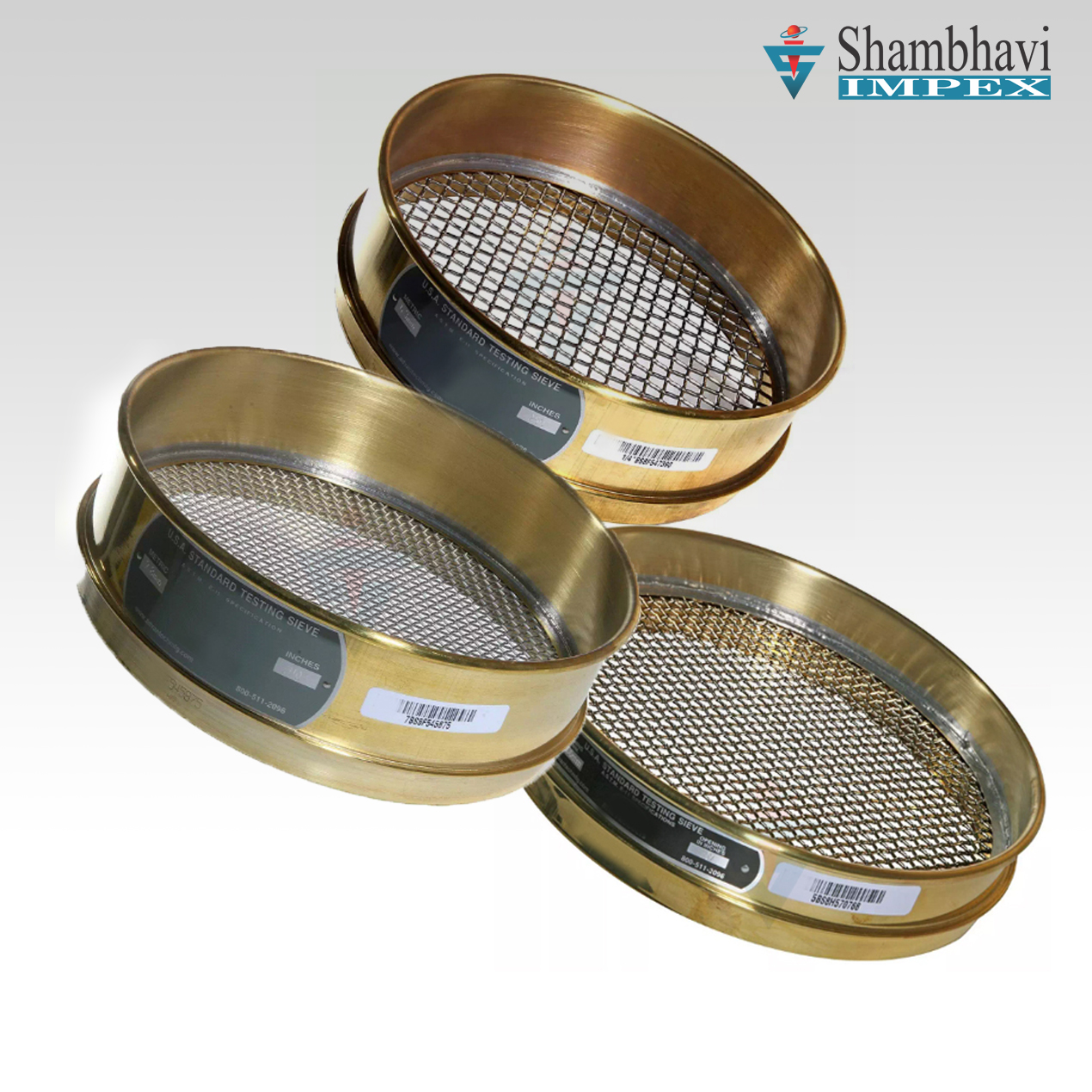

Brass Frame Sieves - (TS-02)

Construction : The frame is made out of spun brass and without any joint in it. A clean rigid design of minimum weight and free from corners where the material could be lodged. Uniform fabrications of our sieves permit easy and smooth nesting on each others and also with lid and receivers. Imported stainless steel 18/8 quality or Phosphor Bronze standard sieve cloth is used for batter performance and lasting. An essential feature of test sieves is that the mesh should be flat, taut and uniform and with permanent tension round the whole circumference. Micro Test Sieves are available in one piece frame of 4" diameter and also available in sizes of 1-1/2", 3", 5" and 6" diameter with suitable lid and receiver.(as per below table) Coares Test Sieves of 8", 12" and 18" diameter are available with perforated plates with round or square holes size No. 4.75 to 100 mm. Meshes in mm - 125, 106, 100, 90, 80, 80, 75, 63, 53, 50, 45, 40, 37.5, 31.5, 26.5, 25, 22.4, 20, 19, 16, 13.2, 12.5, 11.2, 10, 9.5, 8, 6.7, 6.3, 5.6, 4.75, 2.36, 1.18 mm


G.I. Frame Sieves - (TS-03)

These are used for sieve analysis of coarse aggregate in various laboratories and test environments wherein the most demanding accuracy is required. It has a clear rigid design of minimum weight and free from corners where the material could be lodged. Coarse Series:Test Sieves available in 30 cm dia & 45 cm dia made of G.I. frame in coarse series. Mesh in mm - 125, 106, 100, 90, 80, 75, 63, 53, 50, 45, 40, 37.5, 31.5, 26.5, 25, 22.4, 20, 19, 16, 13.2, 12.5, 11.2, 10,9.5, 8, 6.7, 6.3, 5.6, 4.75, 2.36,1.18mm

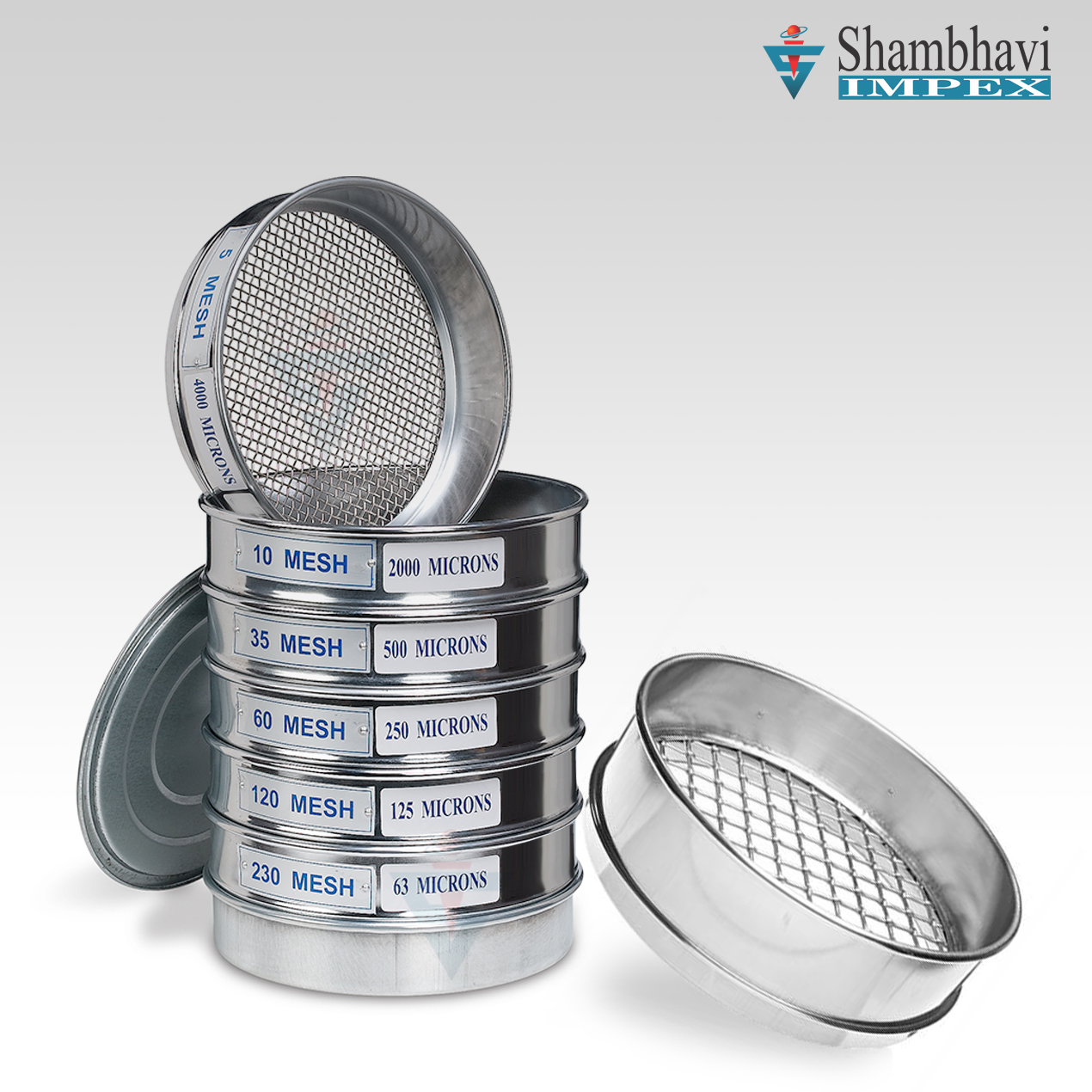

S.S. Frame Sieves - (TS-04)

Test sieve SS)are made from high-grade material and widely used in laboratories for calculating specific sizes of powders and various other materials. Test sieve (ss)are available in numerous sizes at competitive rates.


B.S.SASTMISSMICRONSMM
44480-4.75
5634028123.35
6728024112.80
7824022072.36
81020020572.00
101217016981.70
121414014001.40
141612012001.18
161810010001.00
1820858500.850
2225707000.710
2530606000.600
3035505000.500
3640404250.425
4445353550.355
5250303000.300
6060252500.250
7270202120.212
8580181800.180
100100151500.150
120120121250.125
150140101060.106
1701709900.090
2002008750.075
2402306630.063
3002705530.053
3503254450.045
