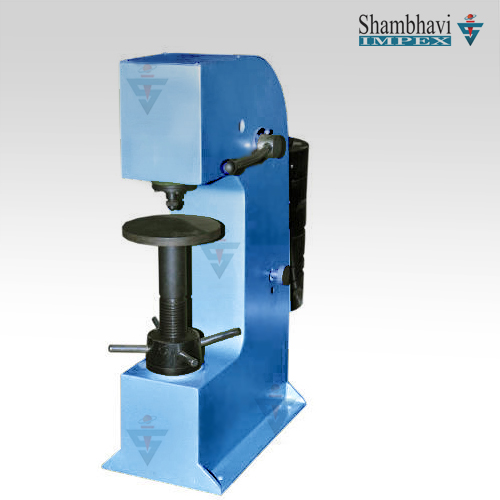

Brinell Hardness Testing Machine

Basic machine design and operation similar to B-3000(H). In addition, an 'Optical Device' with 14x magnification provided in front to project dia of ball impression on glass screen with a micrometer measuring system with 0.01 mm accuracy. The indentor swivels and projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression. This gives real rockwell number on production testing. Hardness Testers Model B-3000(H), (O) & (J) are precision engineered to IS:2281- 1968, BS:240 and ASTM:E10. However B-3000(H), (O), (J) are most suitable for production testing. These machines are designed to measure hardness of casting, forgings, other metals and alloys of all kinds, hard or soft, whether flat, round or irregular in shape.
Standard Accessories

• Testing table 200 mm - 1 pc

• Testing table Y groove 70 mm - 1 pc

• Ball Holder 5 mm - 1 pc

• Ball Holder 10 mm - 1 pc

• Test Block HB - 5/750 - 1 pc

• Test Block HB - 10/3000 - 1 pc

• rockwell Microscope - Nil

• Allen Spanner-4 pes

• Instruction Manual - 1 book

Technical Specification

Specifications	Unit	B-3000(O)	B-3000(H)	B-3000(J)
Loads	200	500 to 3000 in stages of 250	500 to 3000 in stages of 250	500 to 3000 in stages of 250
Initial Load	Kgf.	Nil	250	Nil
Max. Test Height	mm.	380	410	254
Depth of throat	mm.	200	200	154
Max. Depth of elevating screw below base	mm.	180	180	0
Size of base	mm.	370x670	370x670	255x495
Machine Height	mm.	1185	1127	860
Net Weight (Approx.)	Kg.	500	450	210
Drive Motor	HP	0.33-415v/p	0.33-415v/p	Nil

The software includes:

• Facility for Auto / semi Auto / Manual modes of operation.

• Well managed database saves readings w.r.t. batch.

• Facility for calibration and check of calibration.

Scope of Supply:

• Machine containing CCD Camera, optics and illumination systems with connecting cable.

• External Video capture with USB 2 connectivity and driver software.

• Brinell Impression Measurement System (B.I.M.S.)software.

• PC or LAPTOP and windows XP Operating Systems is to be procured by customer

• One USB 2.0 and one RS232 (serial) interface (9pin) is requires and it is recommended for laptop to use external USB to serial converter for RS232 interface
