Vickers Hardness Testing Machine

Vickers Hardness Testing Machine - (SICMVHT-01)

Vickers Hardness Tester is simple & accurate in design. It is suitable for measuring the hardness of precision metallic parts with wide testing range from soft to hard & their accurate results are widely acclaimed. These testers strictly conform to 15:1754-1968.
Standard Accessories
  • Standard Test Block - 1 pc.
  • Diamond Penetrator - 1 pc.
  • Weights -1 set.
  • Flat Anvil - 1 pc.
  • Vee-type Anvil (Small and Big) - 1 pc. each
  • Spanners - 1 set.
  • Electric cord - 1 pc.
  • Instruction Manual - 1 book

Salient Features
  • Tiny indentation allows testing of a precision finished parts.
  • Thin sheet metal are perfectly tested. Because applied load is very small.
  • Motorised loading and unloading cycle.
  • Built-in projection screen to get accurate results.
  • Same hardness number is obtained on the same specimen, regardless of the load applied.
  • Wide testing range, from soft metal such as lead, upto the hardest, like hardened steel.
Technical Specification
Test Loads5,10,20,30,50Kg.
Magnification of optical projection70X
Max. Test Height (mm.)200
Scale least count(mm.)0.001
Depth of throat (mm.)133
Dimensions of Machine (mm.)L585 x W290 x H860
Weight (Approx)73 kg.
Power Supply220V AC, 50Hz, 1-Phase

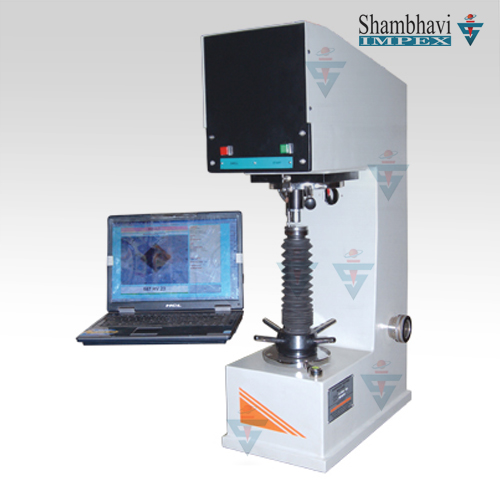

Computerised Vickers Hardness Testers - (SICMVHT-02)

  • Fully Computerised (PC Based) Vickers Hardness Machine.
  • Direct and accurate measurement of Vickers Hardness Number using "State of Art" image processing technology.
  • High accuracy and repeatability of measurement at all loads
  • Faster measurement yielding to higher productivity.
  • Motorised loading and unloading cycle
  • Small loads allow testing of thin sheet metals
  • Wide testing range': from soft metal such as lead up to medium hardened steels.
  • Small size of indentation makes it a non-destructive testing on finished components.
  • Advanced Window 95/NT based software.

Salient Features
  • Latest GUI Features:
  • Online indentation setting and focusing on PC monitor.
  • User-friendly software with all help file and Window Features. Advance image processing: Algorithms implemented for precise calculation of
  • hardness numbers with various options to cover all ranges of specimen.
  • PC requirements
  • Can be connected to Laptop or Desktop PC. Easy to carry anywhere and handy for use with easy setup.
  • Minimum Pentium-II with 64 Mb RAM
  • Windows 98 Operating System. (PC not included in standard scope of supply.)
  • One USB 2.0 and one RS232 (serial) interface (9 pin) is required and it is recommended for Laptop to use external USB to serial converter for RS232 interface
Specifications (unit)SI VM 50 (PC)
Total Loads (kg.)5, 10, 20, 30 & 50
Max. Testing Height (mm)200
Scale Least count (mm)0.001
Throat Depth (mm)135
Machine Dimensions (mm) (Approx.)L585 xW290 x H 860
Net Weight (kg.)(Approx.)70
Power Supply220 V, 50 Hz, 1 Phase

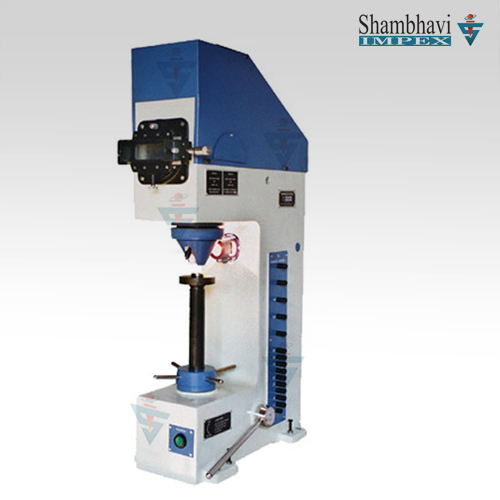

Vickers Hardness Testing Machine - Digital/ Computerised - (SICMVHT-03)

  • Hardness Tester for Rockwell tests. Motorised for automatic operation cycle i.e. load / dwell / unload.
  • Preliminary Test Force - 98.07N (10 kgf.)
  • Additional Test Force - 490.3, 882.6, 1373N (50,90, 140 kgf.)
  • Total Test Force - 588.4, 980.7, 1471 N (60, 100, 150 kgf.)
  • Test Force selection in software / Digital Panel.
  • Set position with LED bar indicator for easy operation.
  • Key board entry through reliable membrane switches for scale / dwell time selection.
  • Large size scale display for easy reading with 0.1 Rockwell resolution.
  • User Friendly Software.
