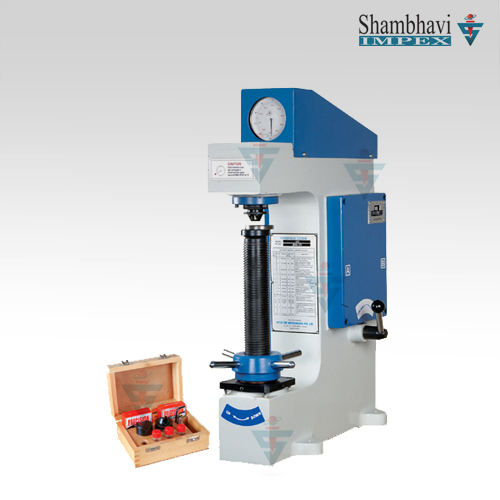

Rockwell Hardness Testing Machine - (SICMRHT-01)

Hardness Testers Models SI RAS, SI RASM, SI RAB-1, SI RAB-250, SI TWIN are manually operated. All these models are suitable for testing hardness of metals & alloys of all kinds hard or soft, whether flat, round or irregular in shape. These testers are simple in design & easy to operate, yet sensitive & accurate. Various models from the wide range are suitable for Engg. Colleges, laboratories, toolroom, inspection departments, factories etc. These testers strictly conform to IS: 3804-1988, BS: 891 parts 1&2, ASTM:E18 for Rockwell Test, IS: 2281-1983, BS: 240, ASTM:E10 for rockwell Test & IS: 5073-1988, ASTM:E18 for Rockwell Superficial Test.

Salient Features

MODEL : SI RAS : Automatic load selection with automatic zero setting dial gauge. Manual Operation.
MODEL : SI RASM : Similar to 'SI RAS1 but motorised model. Semiautomatic operation for production testing. Drive motor single phase 230V 50 cycles.
ROCKWELL COMBINED SYSTEM MODEL SI RAB-1 : Automatic load selection with automatic zero setting dial gauge. Facility for rockwell Tests with 187.5 kgf. load with 2.5 mm ball indentor, additional load 250 kgf. with 5 mm ball Indentor for testing hardness of non- ferrous metals. Manual Operation.
MODEL : SI RAB-250 : Similar to 'SI RAB-11 but bigger capacity Diamond Holder is guided in a set of two bail cage, which enables testing of small pins having dia. less than 6 mm (upto 3mm dia)
ROCKWELL SUPERFICIAL COMBINED SYSTEM MODEL : SI TWIN : Manual load selection with automatic zero setting dial gauge. Manual Operation. Diamond Holder is guided in a set of two ball cage, which enables testing of small pins having dia. less than 6 mm. (upto 3 mm dia.)

Model	UNIT	SI RAS	SI RASM	SI RAB1	SI RAB-250	SI TWIN
Loads	Kgf.	60,100,150	60,100,150	60,100,150,187.5,250	60,100,150,187.5,250	15,30,45 (Rockwell Superficial) 60,100,150 (Rockwell)
Initial Load	Kgf.	10	10	10	10	3(Rockwell Superficial) & 10 (Rockwell)
Max. Test Height	mm.	230	230	230	295	295
Depth of throat	mm.	133	133	133	150	150
Max. Depth of elevating	mm.	240	240	240	310	310
screw below base
Size of base (Approx.)	mm.	171X423	171X423	171X423	210X470	210X470
Machine Height	mm.	635	635	635	845	845
Net Weight (Approx.)	Kg.	75	75	75	137	126

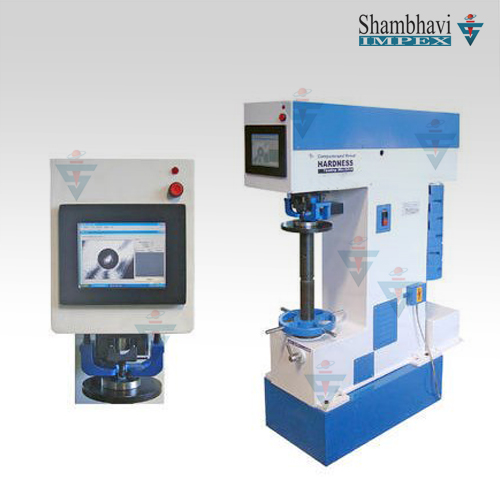

Computerised Rockwell cum Brinell Hardness Testing Machine - (SICMRHT-03)

Ask for Price

IS: 1586:2000 for Roackwell and superficial test. 13:2281:2005 for Brinell Hardness Test. Rockwell cum Brinell tests consists of forcing an indentor (Diamond Ball) into the surface of a test piece in two steps i.e.first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of addition test force (Remaining preliminary test force active) for measurement of hardness value. These machines are suitable for Rockwell cum Brinell tests. These are motorized digital Hardness Testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement. Brinell Hardness measured by using microscope manually.

Salient Features

This is motorized machine having automatic loading/unloading cycle suitable for production testing.
The machine body is having a taper front look and a large size read out in the front. The machine is powder coated for better look. The paint shade do not fade and machine looks like new over years.
The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw more than 0.05 mm when raised to full height. The accessory is retained for years together due to hardened bush.
A hardened and groung stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test piece. It means a trouble free long life machine accuracy.
An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia. Pin or ball upto 3 mm dia.
These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better accuracy

Specifications (unit)	SICMRHT-02
Type	Digital Rockwell cum Brinell
Operation Cycle	Automatic Load/Dwell/Unload
Preliminary Test Force	98.07 N (10 kgf)
Additional Test Force	490.3, 882.6, 1373, 1471, 2354N (50, 90, 140, 177.5, 240 kgf)
Test Force	5800.4, 980.7, 1471, 1839, 2452N (60, 100, 150, 187.5, 250 kgf)
Test Force Selection	By external dialing
Set Position	With LCD bar indicator
Key Board Entry	Through membrane switches for scale, Go-NO GO dwell time selection
Resolution	0.1 Rockwell
Output	Serial PC Interface & Windows Software for only Rockwell scales
